6 L4-2.5L (2010)
b. Shift knob (MTX) See: Transmission and Drivetrain/Manual Transmission/Transaxle/Shifter M/T/Service and Repair
c. Shift panel See: Body and Frame/Interior Moulding / Trim/Console/Service and Repair/Removal and Replacement/Shift Panel
Removal/Installation
d. Decoration panel (See See: Body and Frame/Interior Moulding / Trim/Dashboard / Instrument Panel/Service and Repair/Removal and
Replacement/Decoration Panel Removal/Installation.)
e. Center panel lower See: Body and Frame/Interior Moulding / Trim/Dashboard / Instrument Panel/Service and Repair/Removal and
Replacement/Center Panel Lower Removal/Installation
f.
Rear console See: Body and Frame/Interior Moulding / Trim/Console/Service and Repair/Overhaul
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

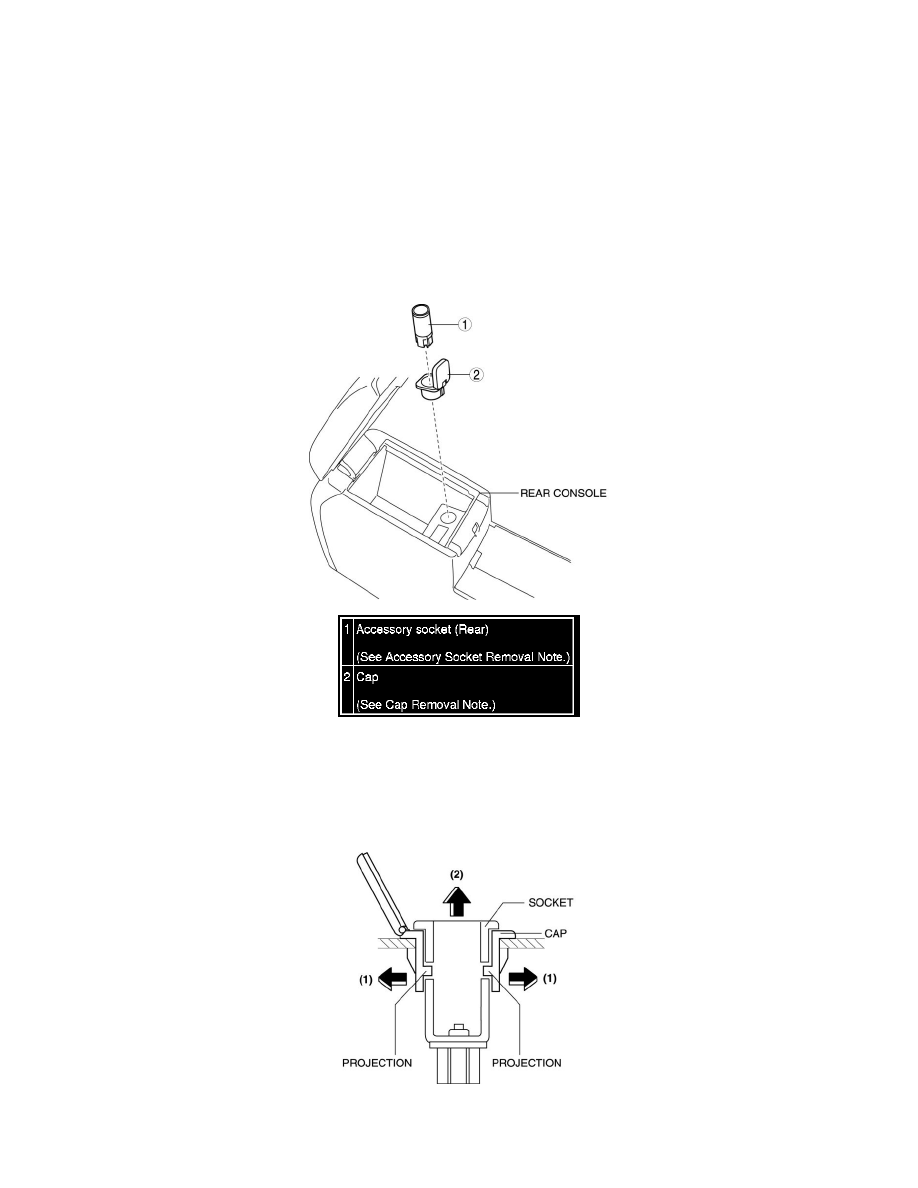

Accessory Socket Removal Note
1. Remove the socket in the direction of the arrow (2) shown in the figure while opening the caps in the direction of the arrow (1) using a
tape-wrapped fastener remover.
Cap Removal Note
