6 L4-2.5L (2010)
Return test

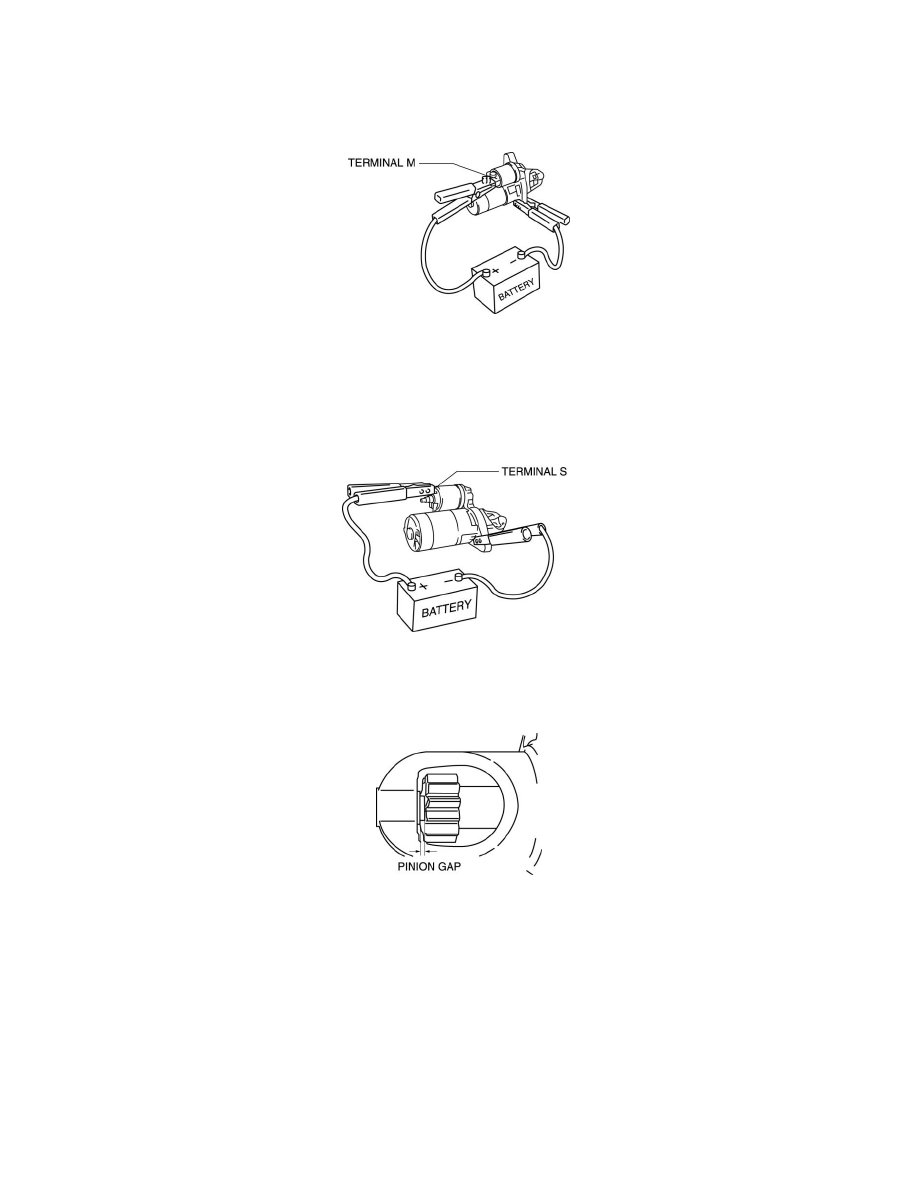

1. Disconnect the motor wire from terminal M.
2. Connect battery positive voltage to terminal M and ground the starter body.
3. Pull out the drive pinion with a screwdriver. Verify that it returns to its original position when released.
-
If it does not return, repair or replace the starter.
Pinion Gap Inspection
1. Pull out the drive pinion with the battery positive voltage connected to terminal S and the starter body grounded.
CAUTION:
-
Applying power for more than 10 s can damage the starter. Do not apply power for more than 10 s.
2. Measure the pinion gap while the drive pinion is extended.
-
If not as specified, adjust with an adjustment washer (between drive housing front cover and magnetic switch).
Starter pinion gap
-
0.5-2.0 mm {0.02-0.07 in}
Starter Inner Parts Inspection
NOTE:
-
The first four digits of the part number indicated on the starter nameplate
