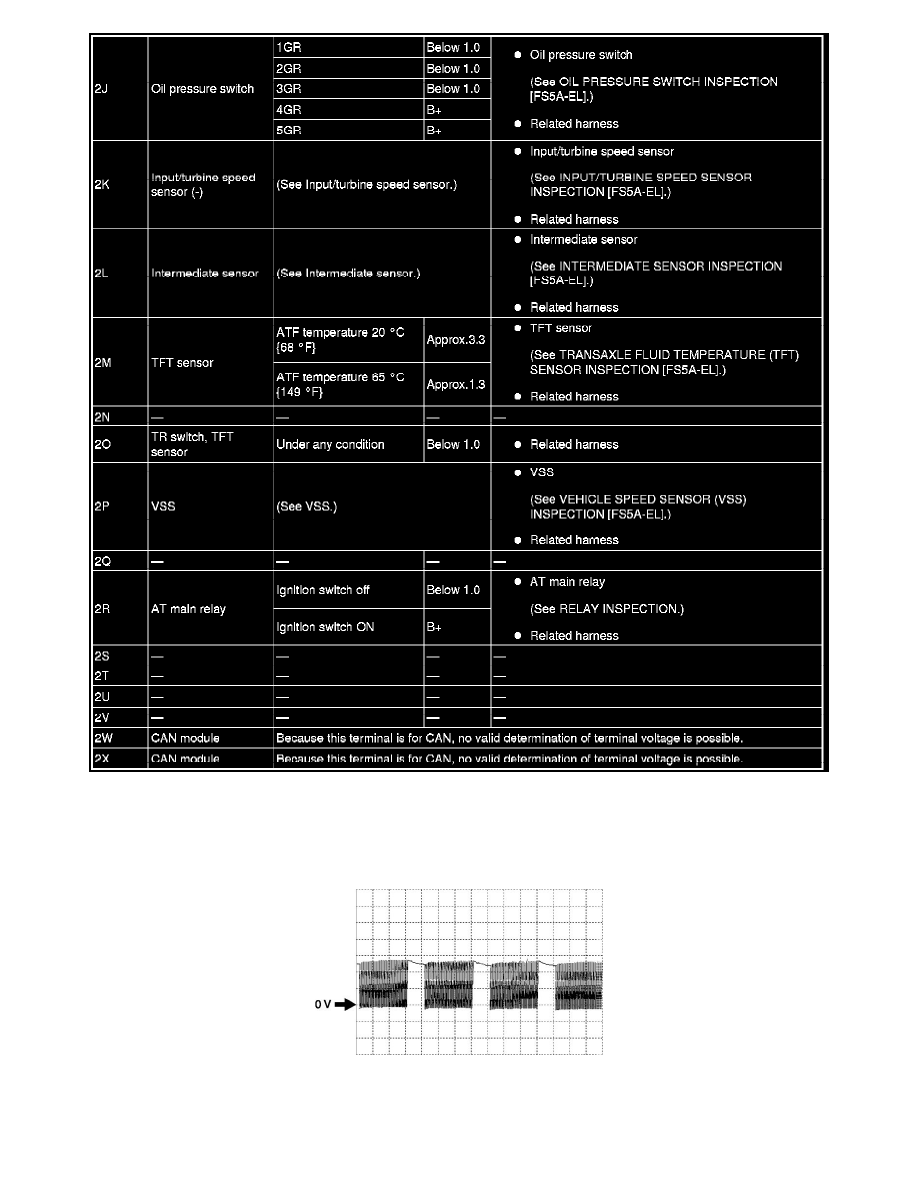

6 L4-2.5L (2010)
TCM Terminal Voltage (Reference) (Part 3)
Input/Output Wave From (Reference)
Shift solenoid A
-
TCM terminals
1A (+)-body GND (-)
-
Oscilloscope setting
5 V/DIV (Y), 5 ms/DIV (X), DC range
TCM Terminal Voltage (Reference) (Part 3)
Input/Output Wave From (Reference)
Shift solenoid A
-
TCM terminals
1A (+)-body GND (-)
-
Oscilloscope setting
5 V/DIV (Y), 5 ms/DIV (X), DC range
