6 L4-2.5L (2010)
Transmission Position Switch/Sensor: Service and Repair
TRANSAXLE RANGE (TR) SWITCH REMOVAL/INSTALLATION [FS5A-EL]
CAUTION:
-
Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the
connector when disconnecting it.
-
Do not damage the terminals.
1. Engage the parking brake and use wheel chocks at the front and rear of the wheels.
2. Select the selector lever to N position.
3. Disconnect the negative battery cable.
4. Remove the air cleaner component. See: Engine, Cooling and Exhaust/Engine/Intake Manifold/Service and Repair
5. Remove the aerodynamic under cover NO.2. See: Body and Frame/Splash Guard/Service and Repair/Aerodynamic Under Cover No.2
Removal/Installation

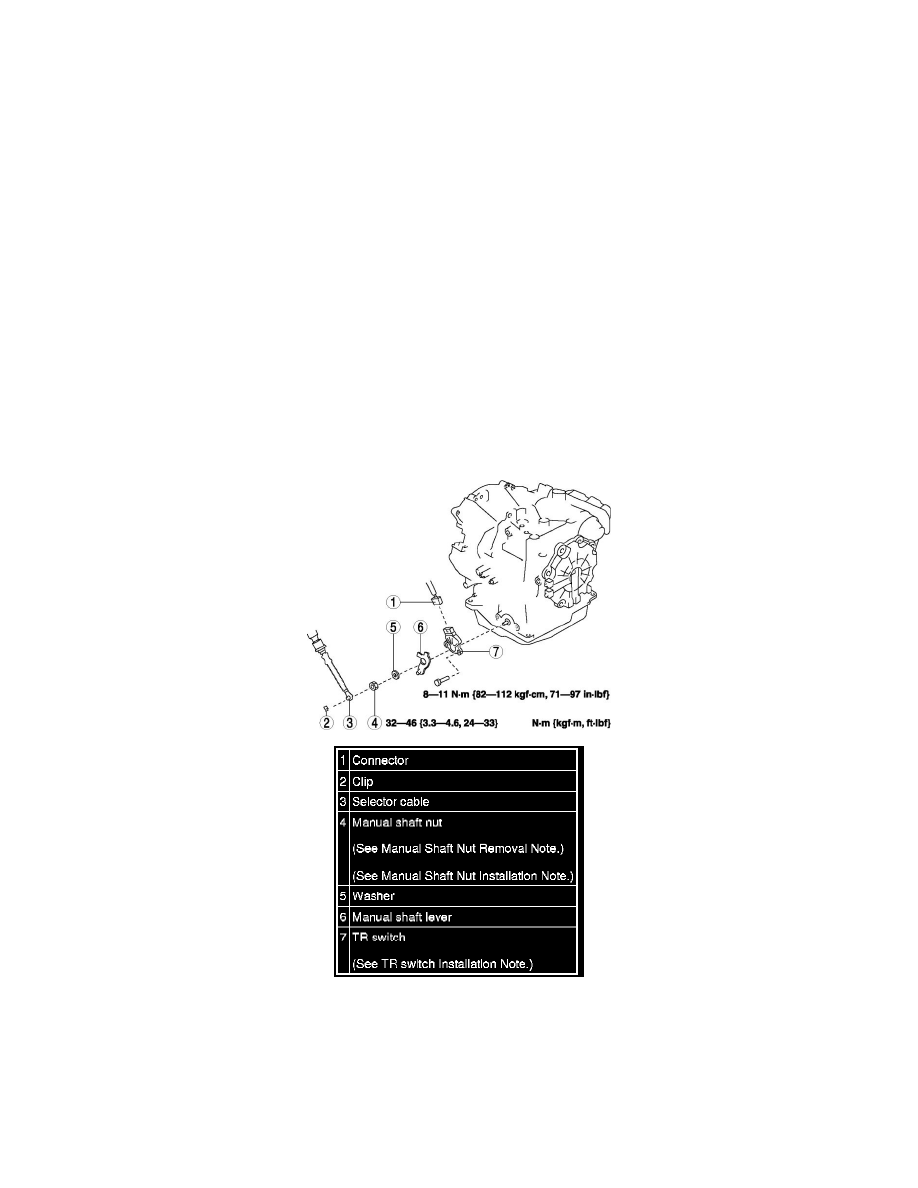

6. Remove in the order indicated in the table.
7. Install in the reverse order of removal.
8. Inspect the TR switch. See: Testing and Inspection/Transaxle Range (TR) Switch Inspection - FS5A-EL
Manual Shaft Nut Removal Note
1. Set the adjustable wrench as shown to hold the manual shaft lever and loosen the manual shaft nut.
