6 L4-2.5L (2010)

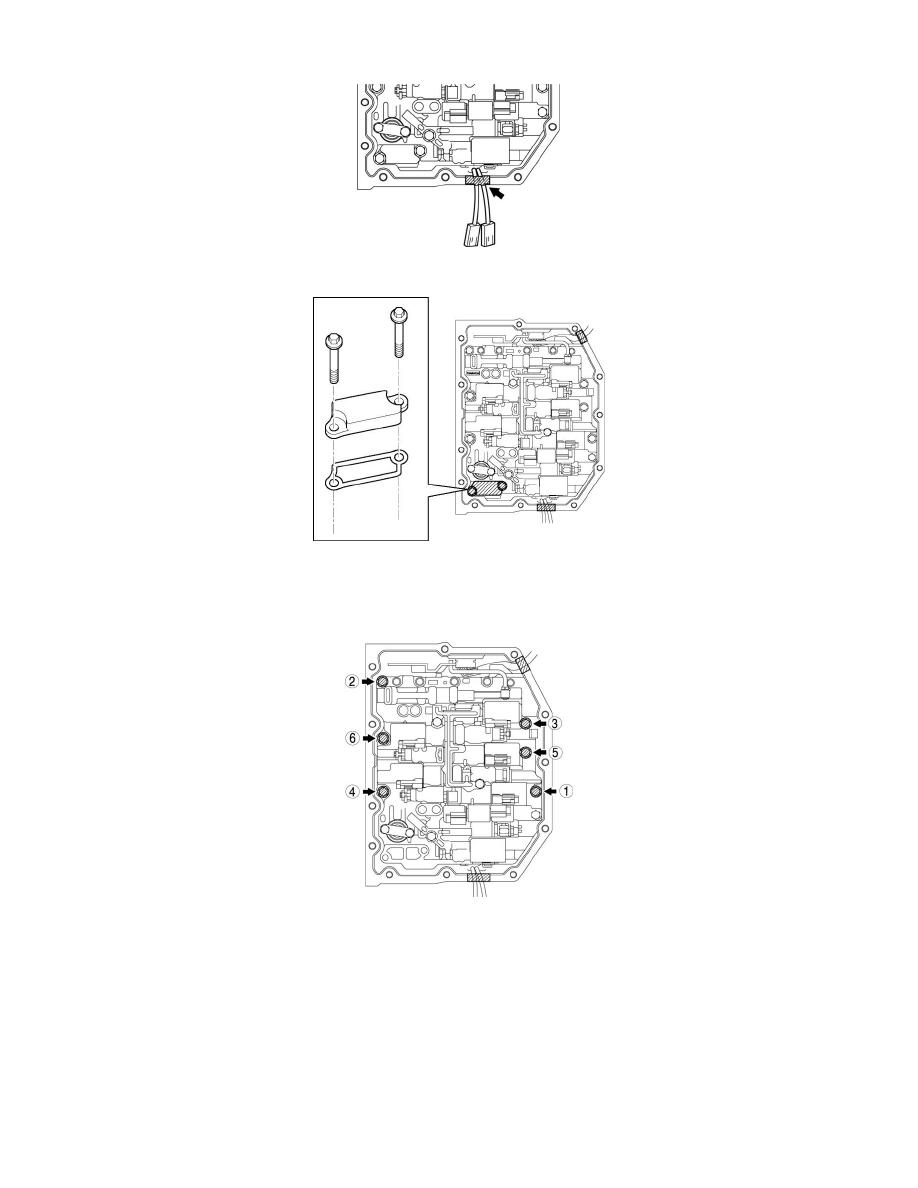

17. Fix the VSS wiring harness and input/turbine speed sensor wiring harness with tape to the transaxle case as shown in the figure.
18. Remove the suction cover and the gasket.
CAUTION:
-
Evenly loosen the bolts a little at a time in the order shown in the figure.
19. Remove the control valve body installation bolts.
CAUTION:
-
Do not drop the control valve body component.
20. Disconnect the manual valve link and remove the control valve body component.
