6 L4-2.5L (2010)

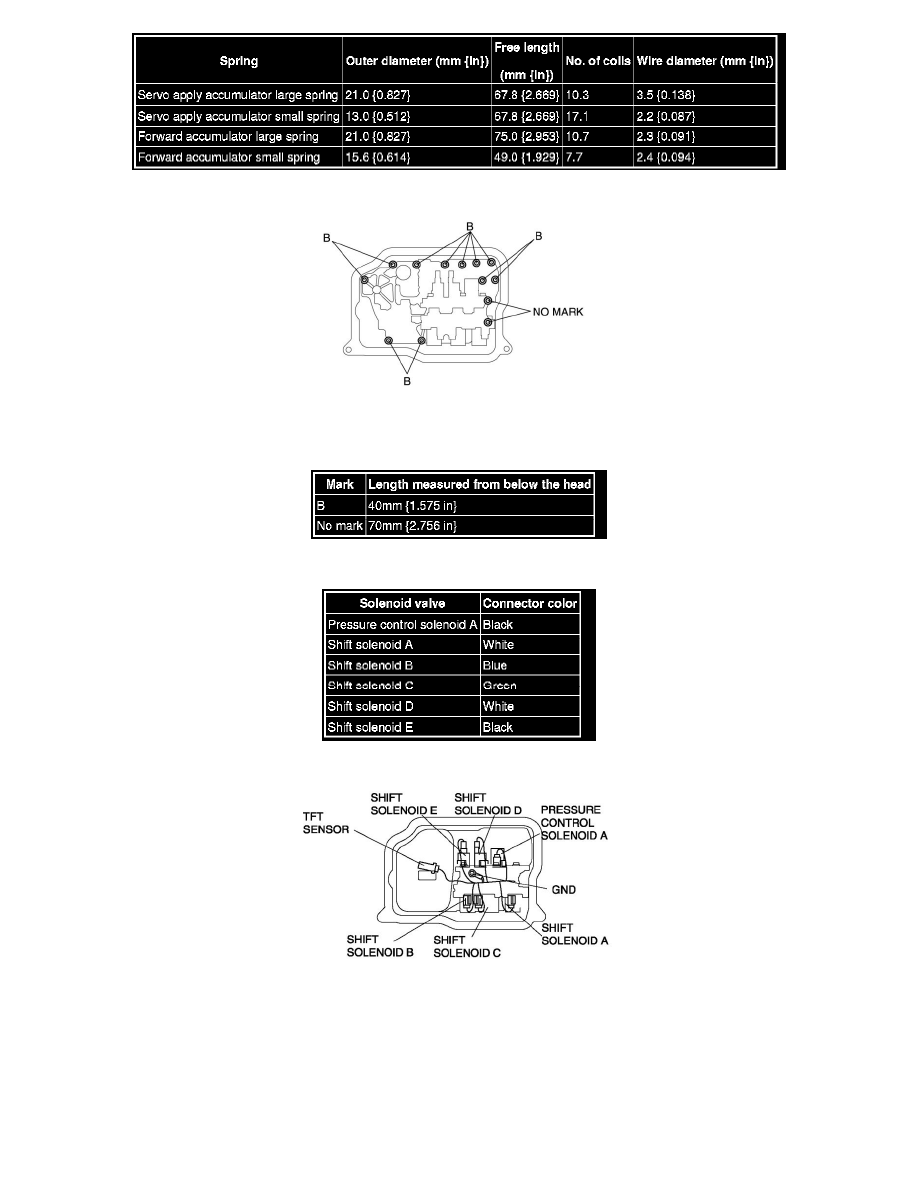

2. Tighten the bolts as shown to install the primary control valve body.
Tightening torque
-
8-10 Nm {82-101 kgf-cm, 71-88 in-lbf}
Bolt length measured from below the head
3. Match the harness colors, then connect each solenoid valves connector. Connector color (harness-side)
4. Install the GND.
Tightening torque
-
8-10 Nm {82-101 kgf-cm, 71-88 in-lbf}
5. Install the TFT sensor to the oil strainer.
6. Install the oil strainer.
7. Apply a light coat of silicon sealant (TB1217E) to the contact surfaces of the oil pan and transaxle case.
