6 L4-2.5L (2010)

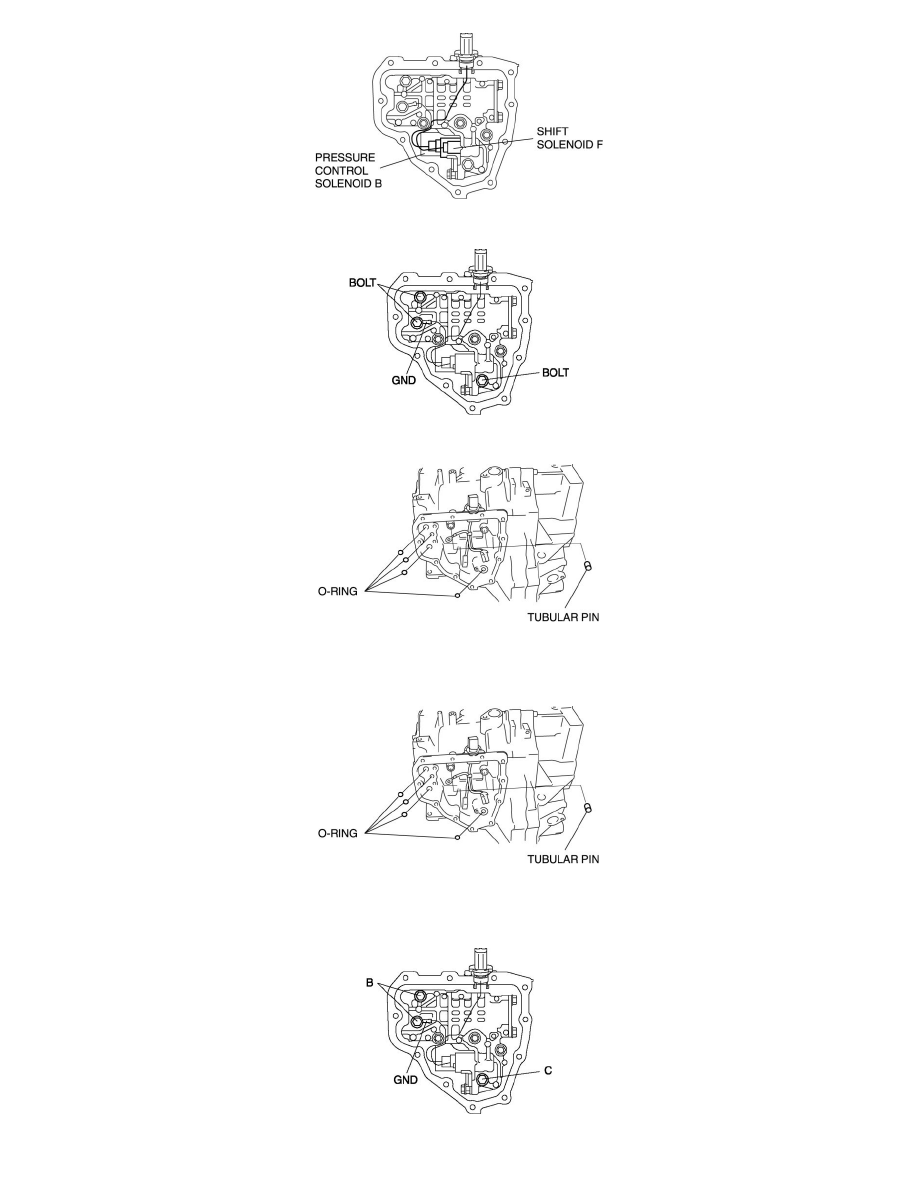

9. Remove the bolts and GND as shown, then remove the secondary control valve body.
10. Remove the tubular pin and O-ring.
Secondary Control Valve Body On-Vehicle Installation
1. Install the tubular pin and new O-rings to the transaxle case.
2. Install the secondary control valve body.
3. Tighten the bolts and GND as shown to install the secondary control valve body.
Tightening torque
