6 L4-2.5L (2010)
Clutch Master Cylinder: Removal and Replacement
CLUTCH MASTER CYLINDER REMOVAL/INSTALLATION
CAUTION:
-
Fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. If it is spilled, wipe it off immediately.
NOTE:
-
If clutch system-related hydraulic parts are removed, supply clutch fluid, bleed air, and inspect for fluid leakage after the installation.
1. Remove the battery and battery tray.
2. Remove the cowl panel. See: Body and Frame/Cowl/Cowl Moulding / Trim/Service and Repair/Cowl Panel Removal/Installation
3. Remove the PCM and the PCM bracket. See: Powertrain Management/Computers and Control Systems/Engine Control Module/Service and
Repair/Removal and Replacement

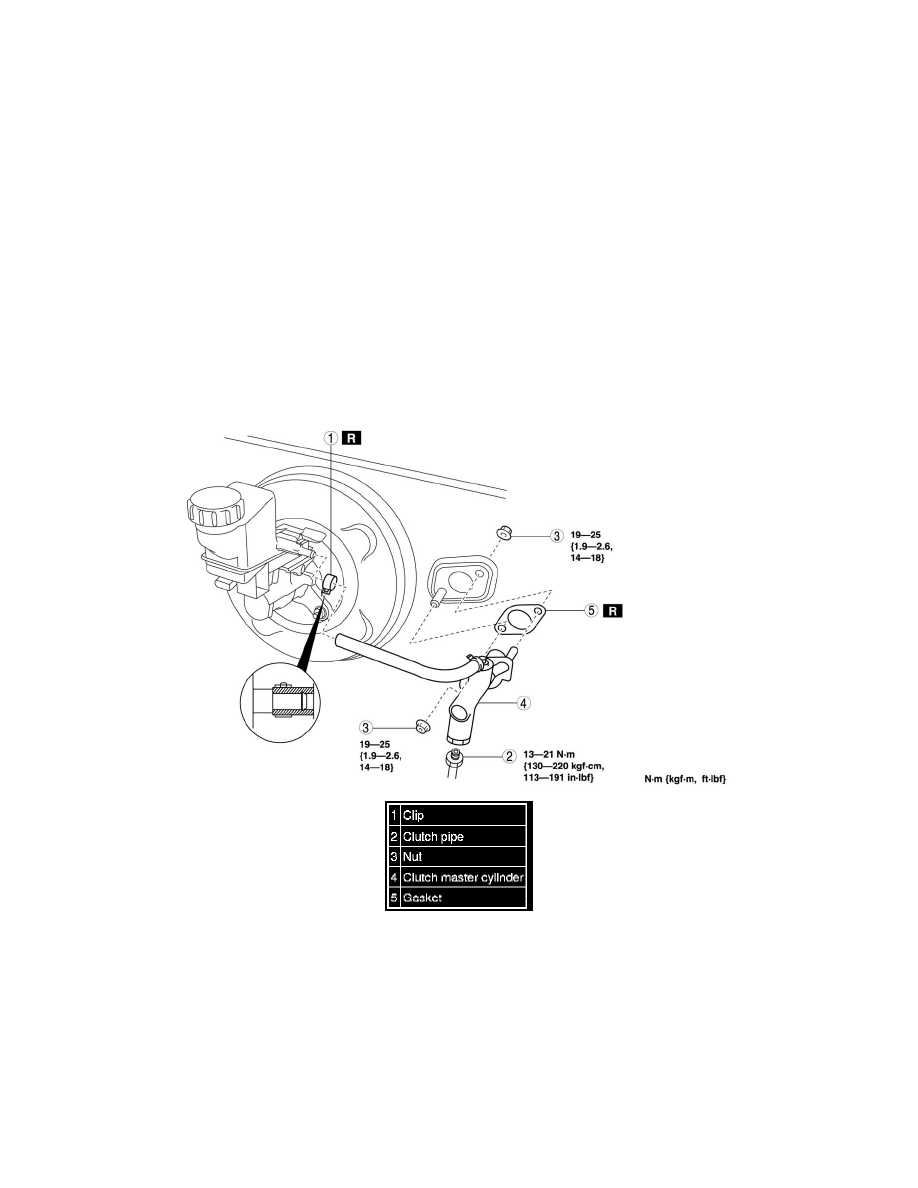

4. Remove in the order indicated in the table.
5. Plug the clutch pipe after removing it to avoid leakage.
6. Install in the reverse order of removal.
