Page 3

background image

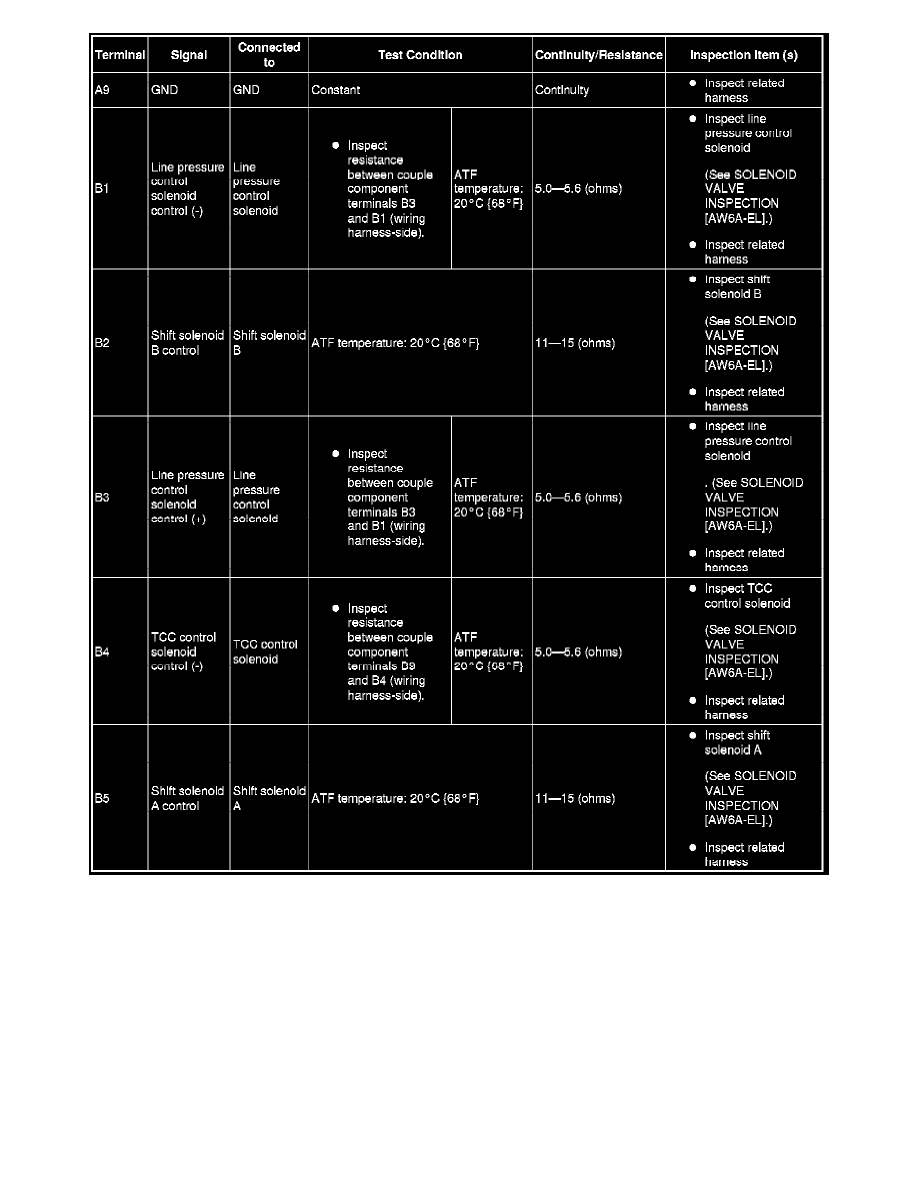

Terminal Continuity/Resistance Table (Reference) (Part 1)

Transmission and Drivetrain
Transmission Control Systems
Relays and Modules - Transmission and Drivetrain / Relays and Modules - A/T / Control Module, A/T / Component Information
Testing and Inspection / Component Tests and General Diagnostics
Page 4775
