6 L4-2.5L (2010)

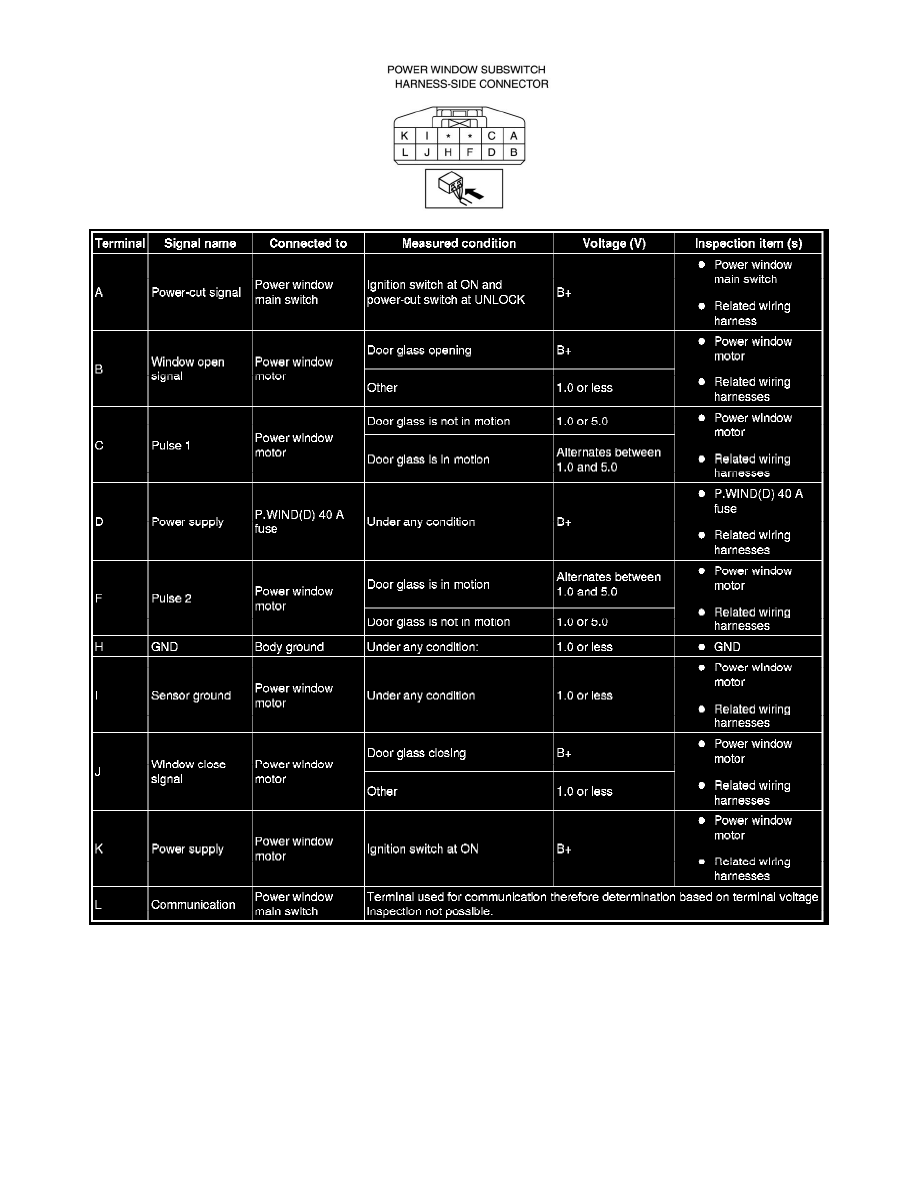

Terminal Voltage Table
Except Passenger's side (With Auto-open/close Function)
1. Disconnect the negative battery cable.
2. Remove the inner garnish. (front passenger's side) See: Body and Frame/Doors, Hood and Trunk/Doors/Front Door/Front Door Panel/Service and
Repair/Removal and Replacement/Inner Garnish Removal/Installation
3. Remove the front door trim. (front passenger's side) See: Body and Frame/Doors, Hood and Trunk/Doors/Front Door/Front Door Panel/Service
and Repair/Removal and Replacement/Front Door Trim Removal/Installation
