6 L4-2.5L (2010)
Wiper Arm: Service and Repair

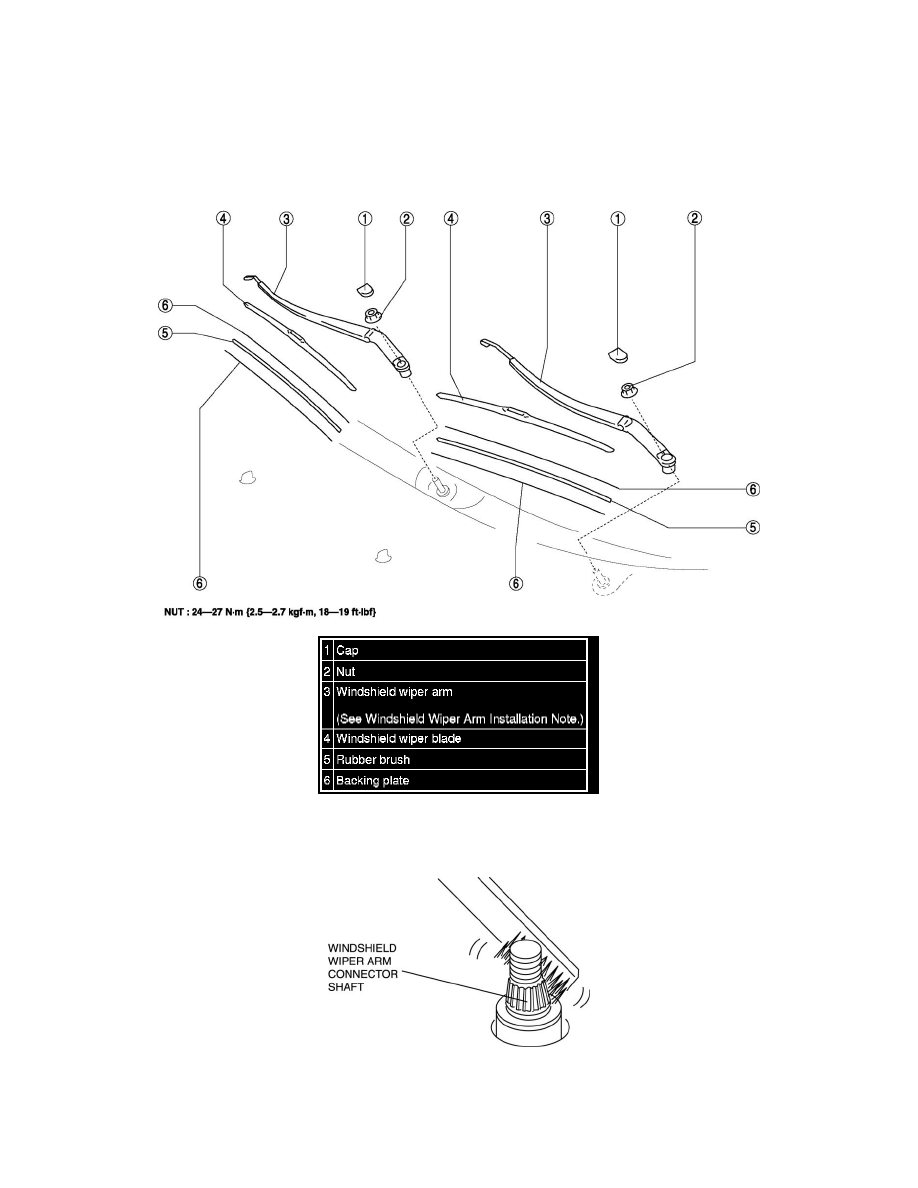

WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. Adjust the windshield wiper arm and blade. See: Adjustments
Windshield Wiper Arm Installation Note
1. Clean the windshield wiper arm connector shafts using a wire brush before installing the windshield wiper arms.
