Drive Belt: Diagrams (page 2 of 4)

Make

Mazda

Model

6

Engine

V6-3.0L DOHC

Year

2003

Section

Drive Belt

MaintenanceDiagrams · page 2 of 4

Drive Belt: Testing and Inspection

DRIVE BELT INSPECTION

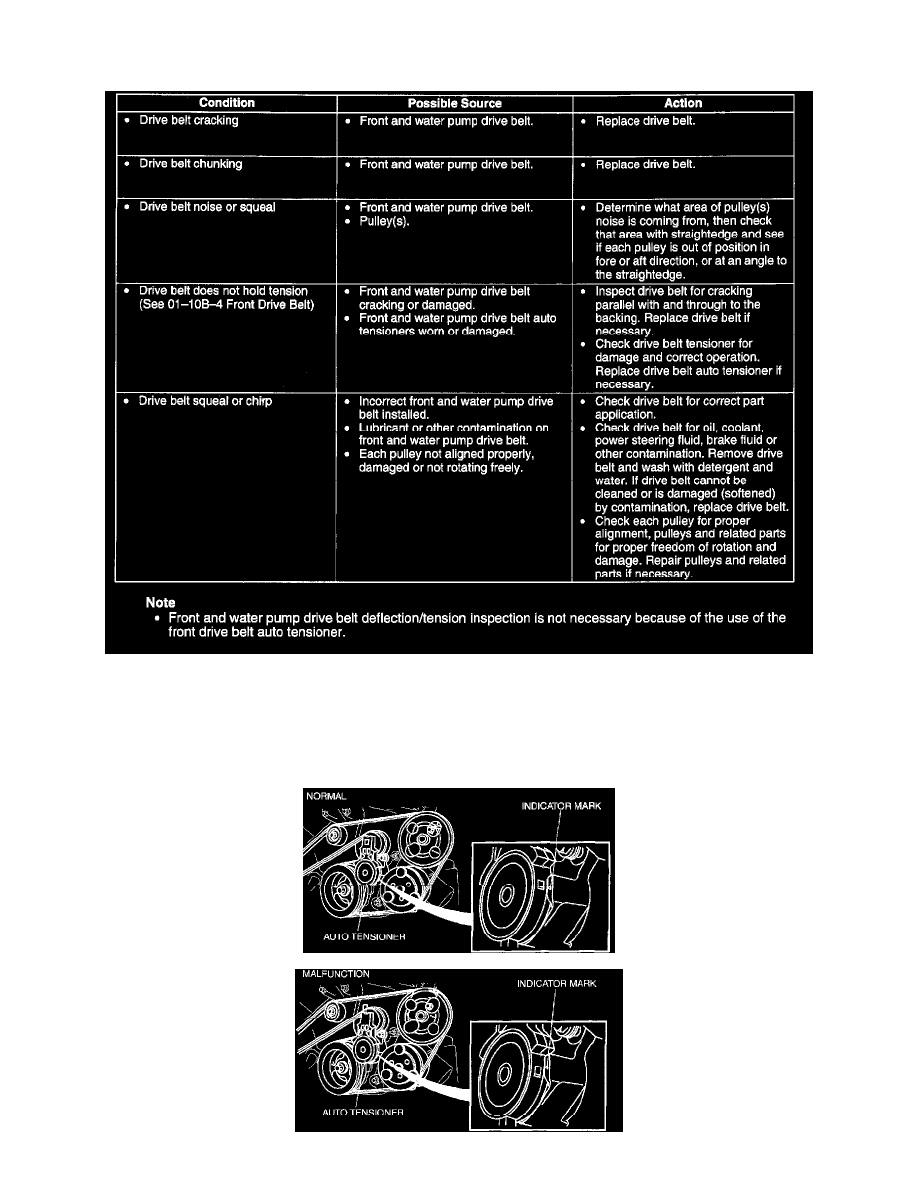

Symptom Chart

Note

-

Front and water pump drive belt deflection/tension inspection is not necessary because of the use of the front drive belt auto tensioner.

Front Drive Belt
