6 V6-3.7L (2009)
Air Door Actuator / Motor: Service and Repair

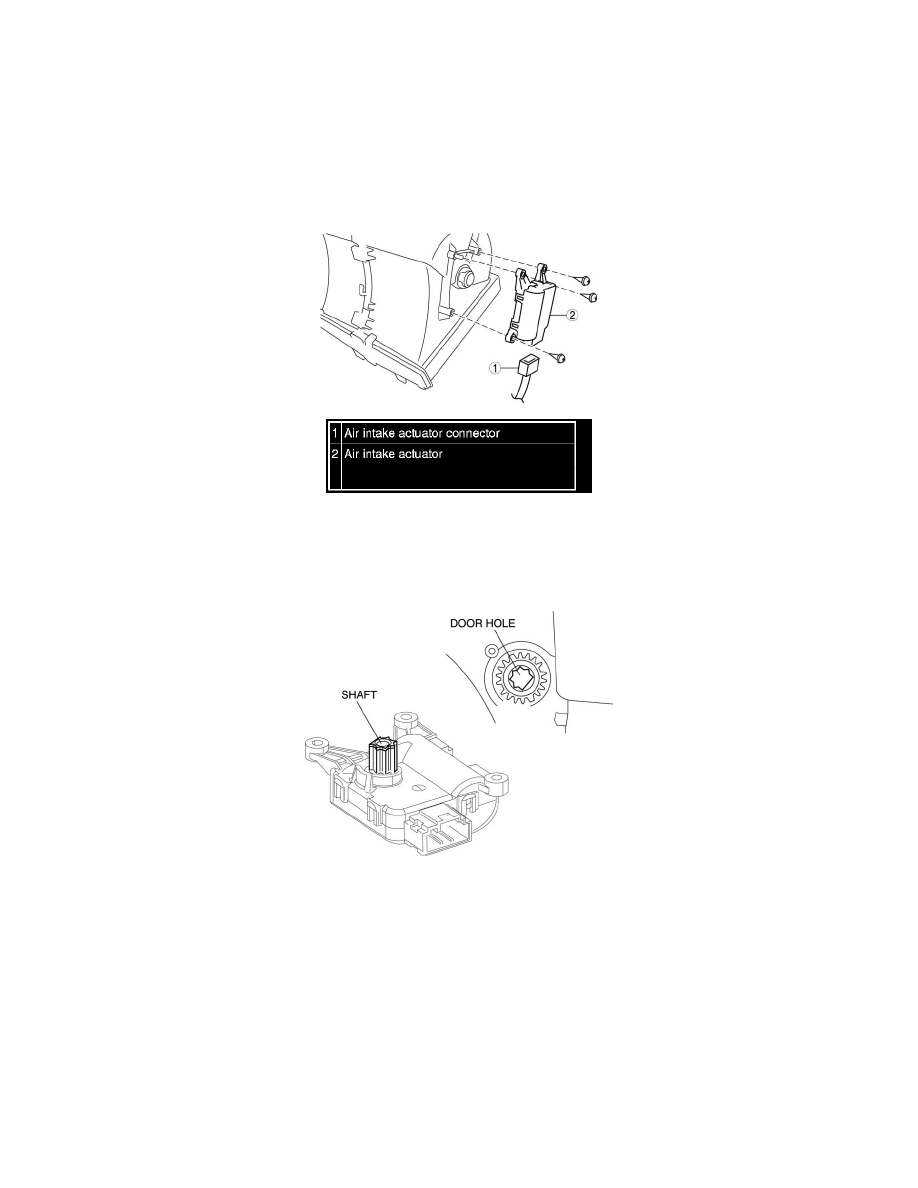

Air Intake Actuator Removal/Installation [Full-Auto Air Conditioner]
AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]
1. Disconnect the negative battery cable.
2. Remove the glove compartment. See: Body and Frame/Interior Moulding / Trim/Glove Compartment/Service and Repair
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
Air Intake Actuator Installation Note
1. Insert the air intake actuator shaft to the door hole aligned with each shape same as removed position.
