Page 1
background image

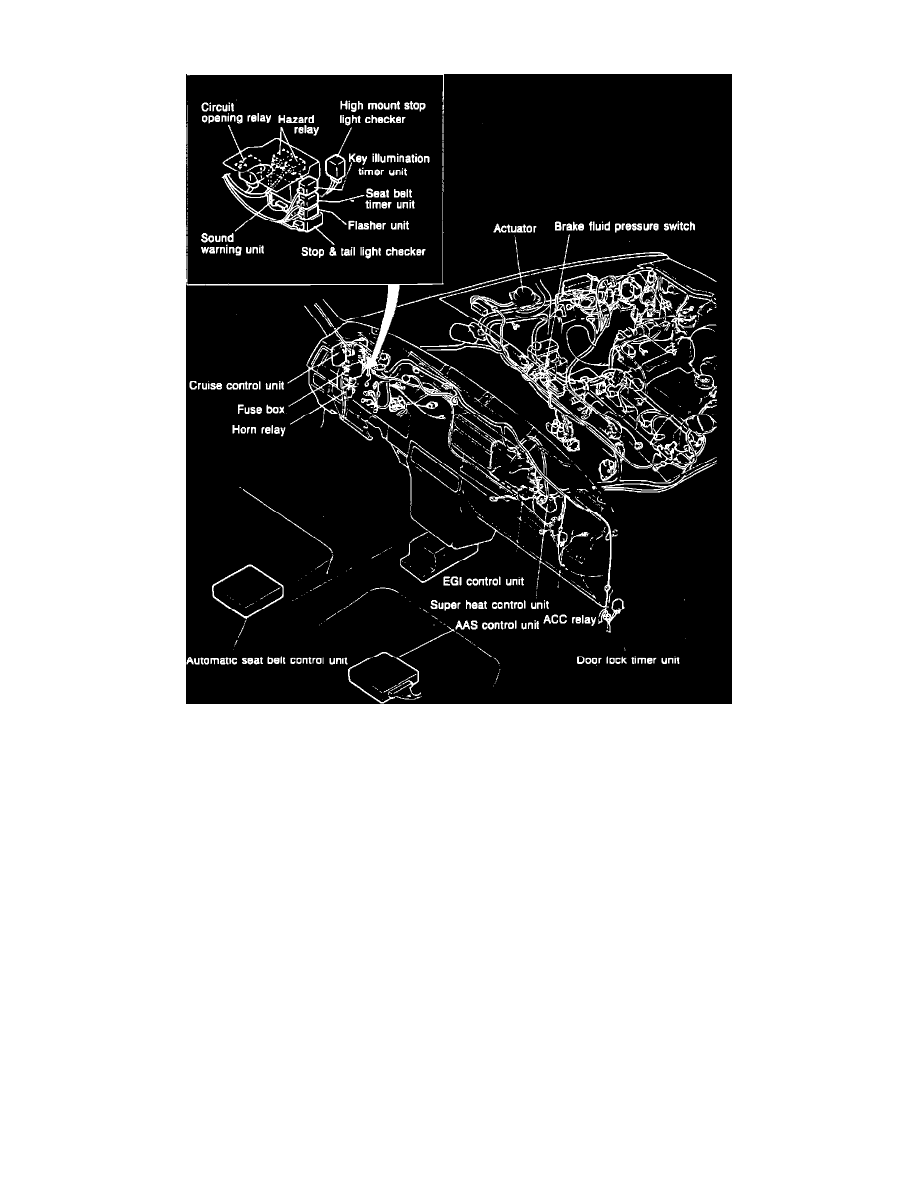

Accessory Delay Relay: Locations

Relays & control units.

 Behind RH Side Of Dashboard

Applicable to:  1987 626
