626 L4-2184cc 2.2L SOHC Turbo F2 (1988)
Igniter: Testing and Inspection

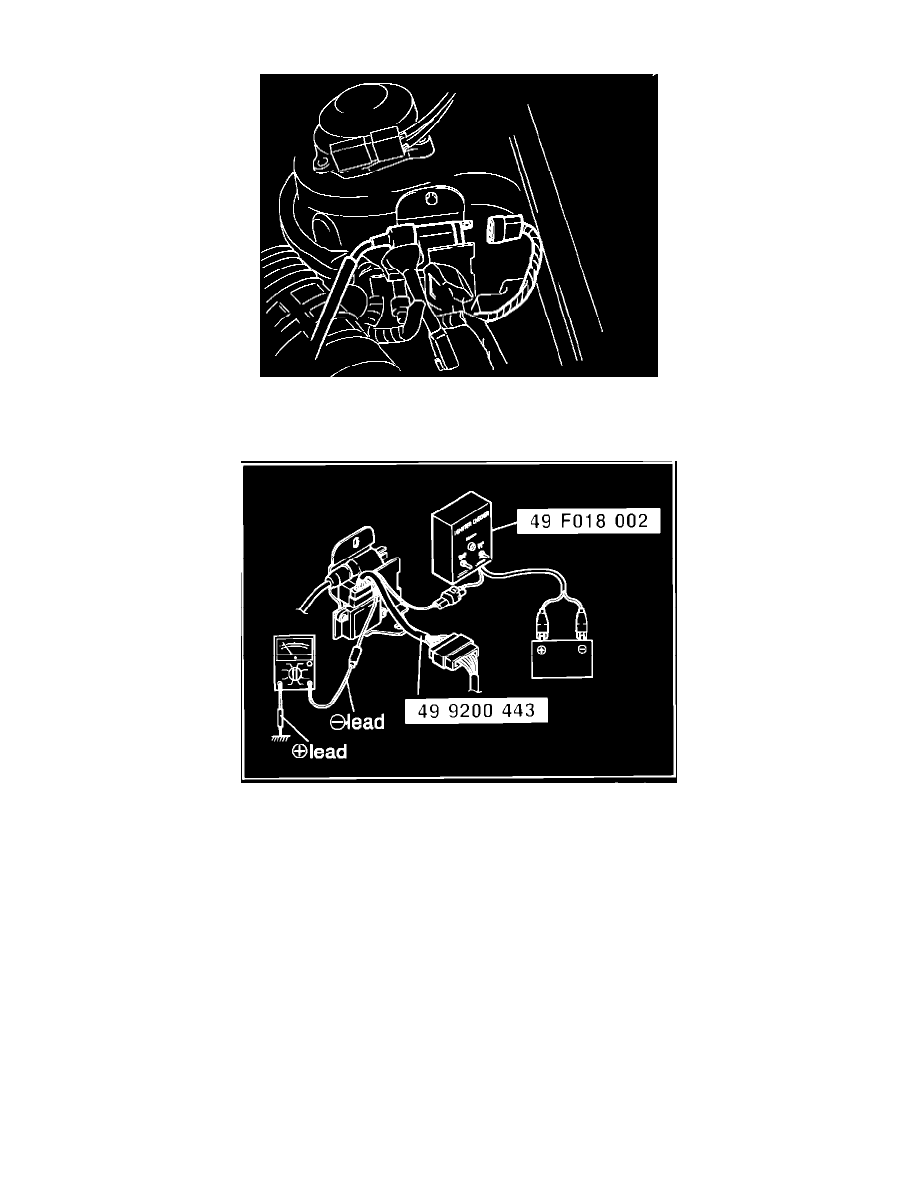

Fig. 8 Testing igniter.
Disconnect connector from ignition coil while checking igniter.
Fig. 9 Hookup of igniter tester SST.
1.
Disconnect igniter connector.
2.
Connect tool 49F018002, Fig. 9. or equivalent between igniter and igniter connector.
3.
Connect ohmmeter between tool and ground and set scale change dial to X1. Do not cross ohmmeter leads. Connect positive lead to ground
and negative lead to tool.
4.
Connect tool to battery.
5.
Turn ignition switch to ON position.
