626 L4-2184cc 2.2L SOHC Turbo F2 (1988)

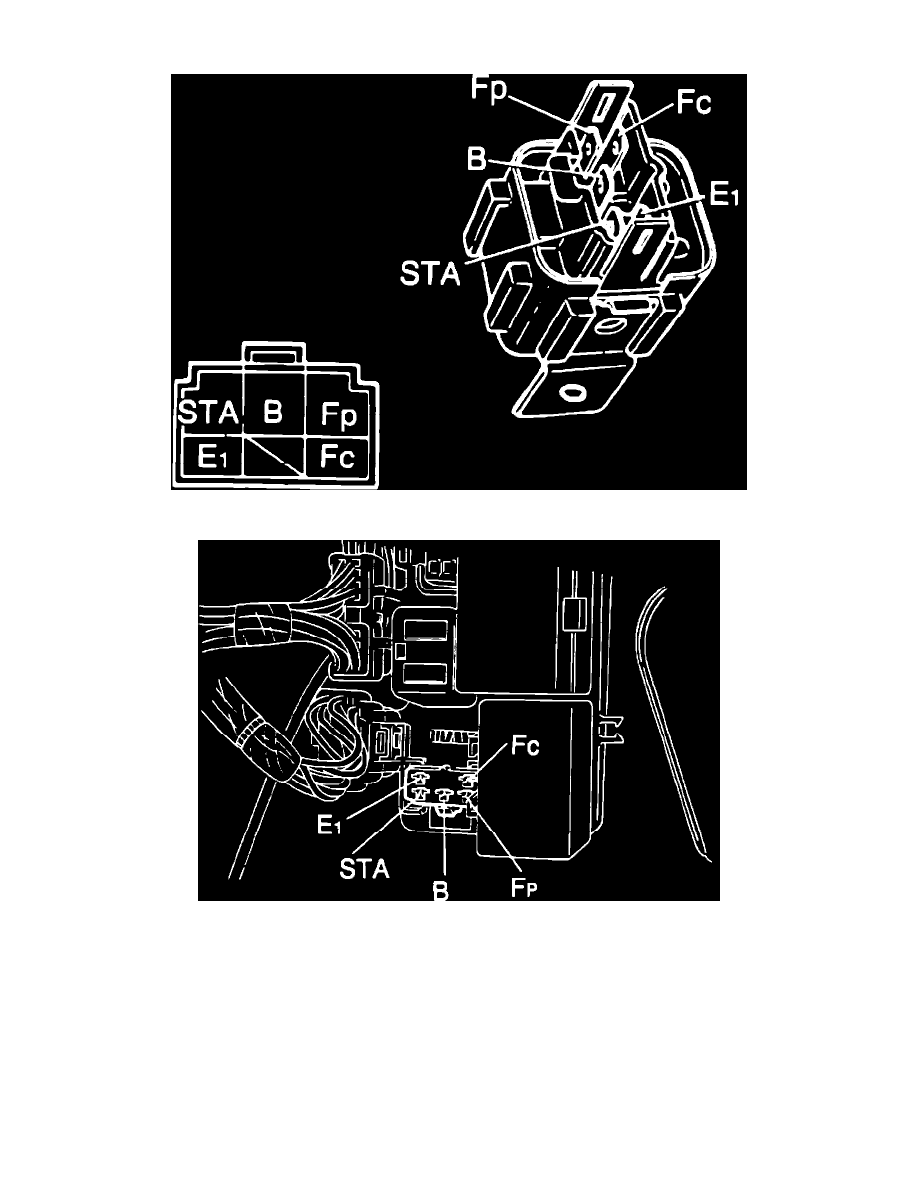

a. There should be 15-30 ohms between terminals STA and E1.
b. There should be 80-150 ohms between terminals B and Fc.
c. There should be infinite ohms between terminals B and Fp.
