NOTE:  The pickup bed bolts are not identical and must be installed in the same location that they are removed from.

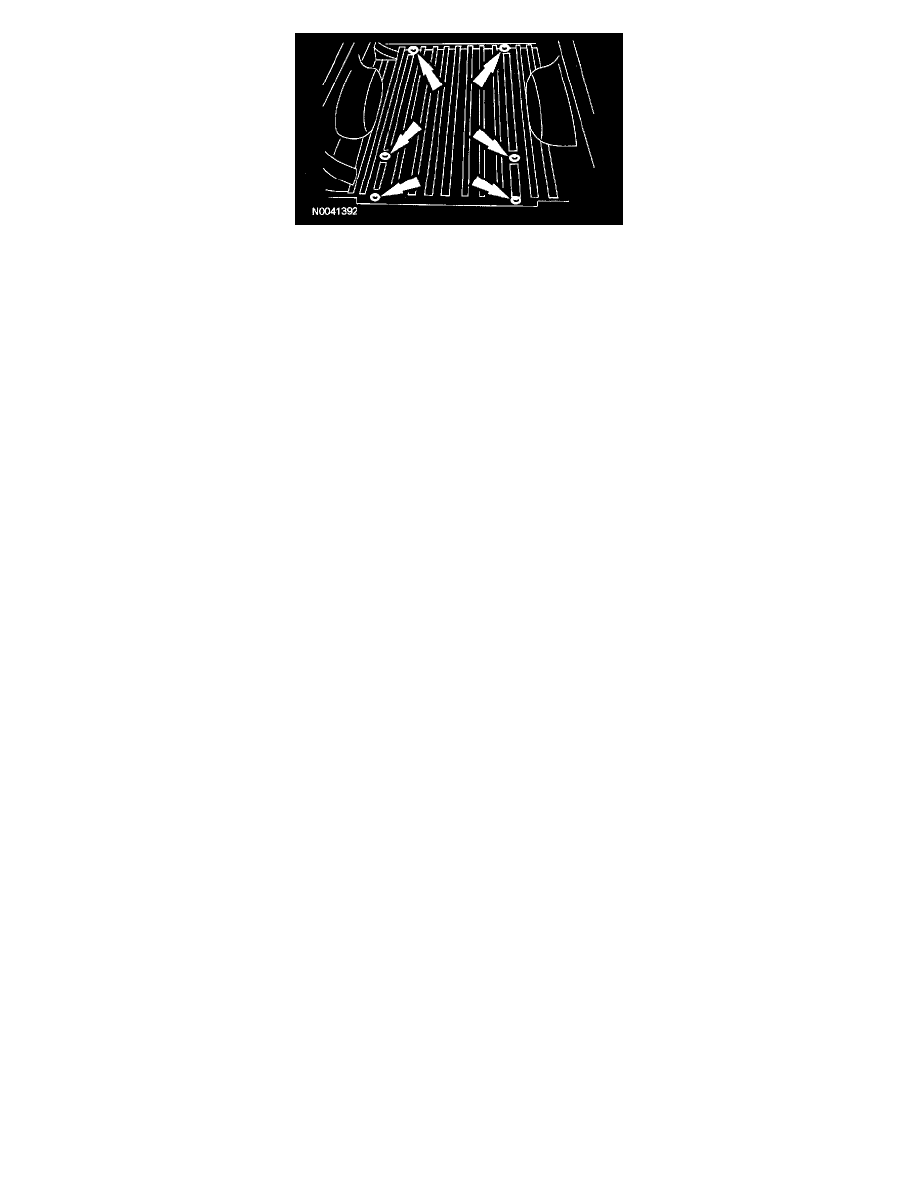

5. Remove the pickup bed bolts.

-

To install, tighten to 63 N-m (6.4 kgf-m, 46 ft-lbf).

NOTE:  Lifting the pickup bed requires at least 2 people on each side.

6. Remove the pickup bed.
7. To install, reverse the removal procedure.

-

Inspect and replace any damaged J-nuts.
