B3000 V6-3.0L (2007)

Page 1
background image

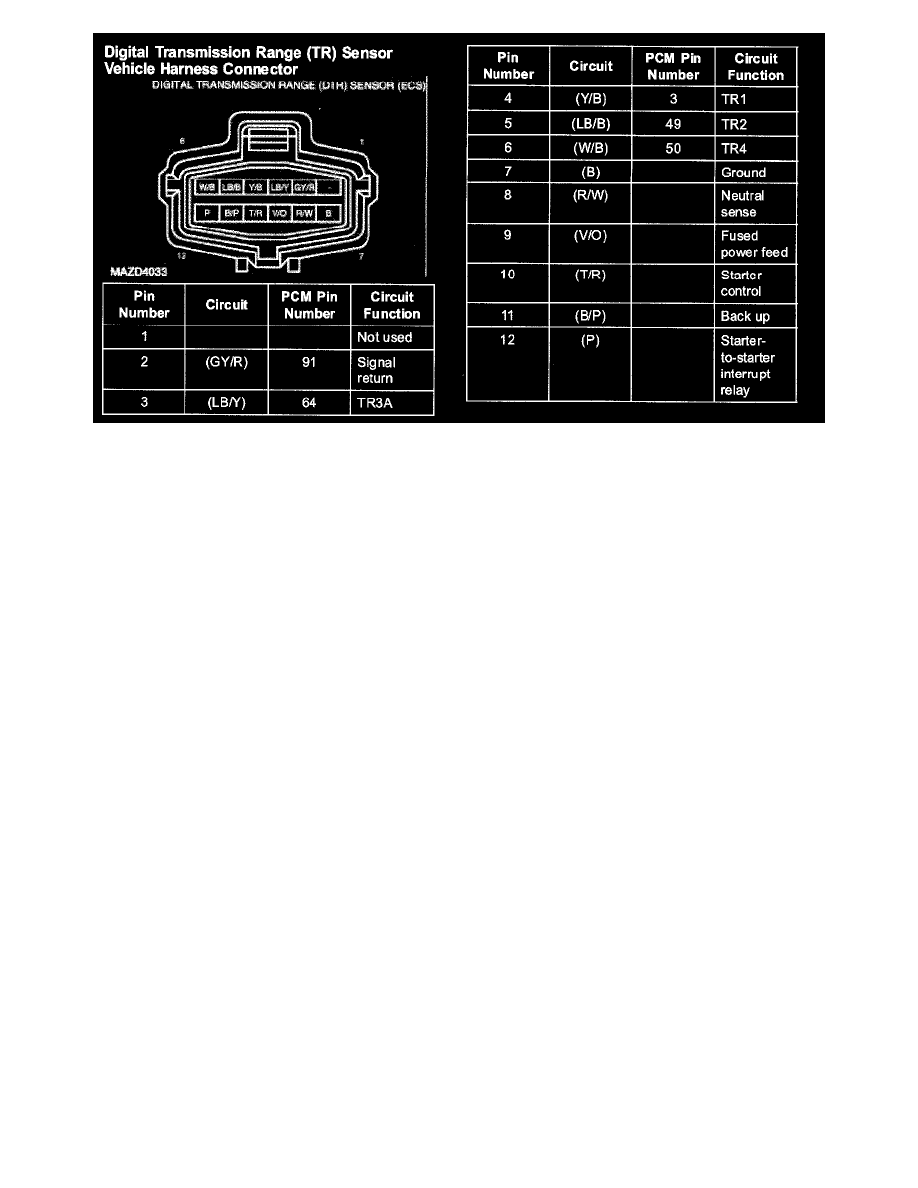

Digital Transmission Range (TR) Sensor Vehicle Harness Connector
