B Series Truck 4WD L4-2555cc 2.6L SOHC (1988)
Bumper: Technical Service Bulletins
Rear Bumper Bolts - Loose
Category 14
Applicable Model/s 1988 B2200/B2600
Subject REAR BUMPER BOLTS LOOSE
Bulletin No.
056/88
Issued
7/19/88
Revised
DESCRIPTION

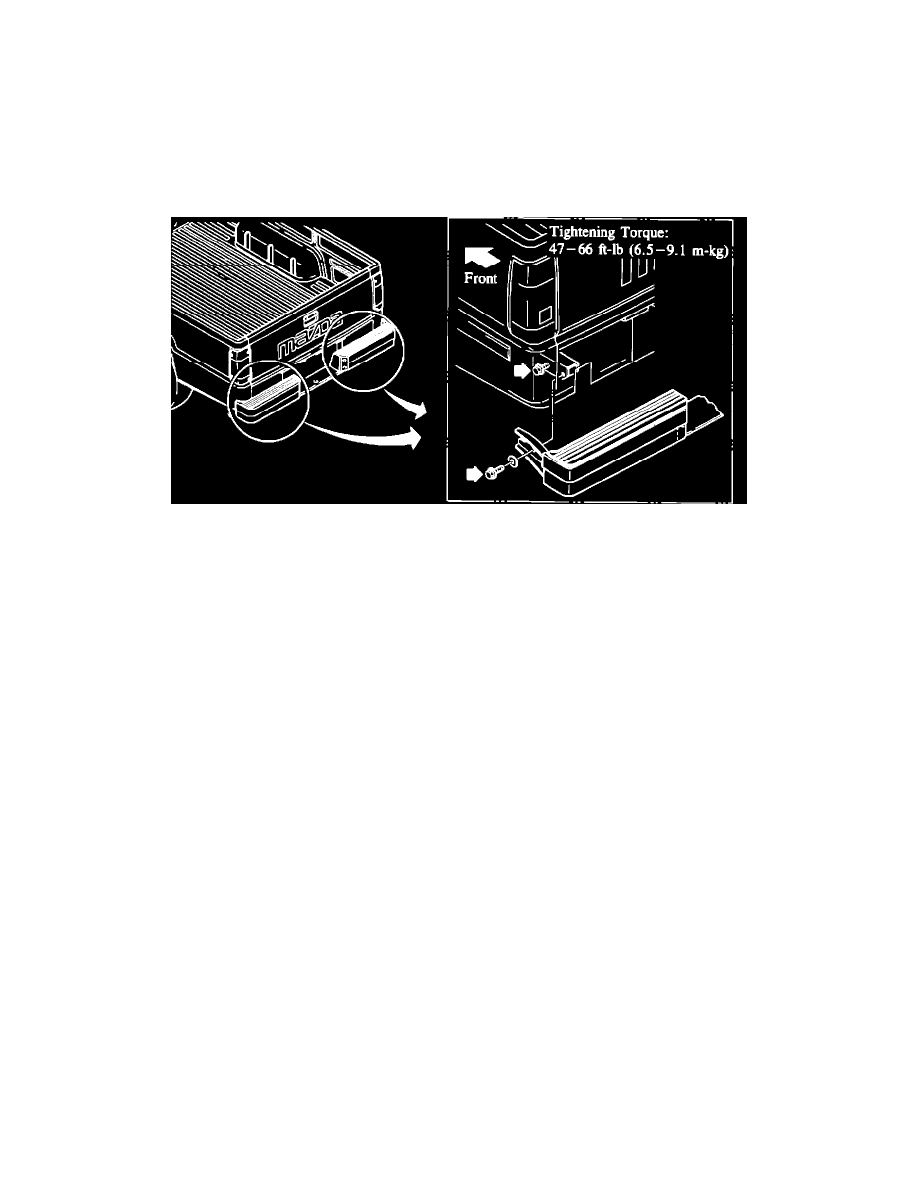

On SE-5 and LX models with factory installed bumpers, the bolts which secure the rear bumper may become loose due to insufficient tightening.
Therefore, please retighten the FOUR BOLTS (both left and right side) of all the vehicles in inventory immediately and retighten the bolts of the sold
vehicles at the earliest service opportunity. Then apply white paint on the left side bolts.
NOTE 1:
This procedure must be performed on both left and right side.
NOTE 2:
If white paint has already been applied on the left side bolts, this repair is no longer required.
VIN OF AFFECTED VEHICLES
1988 B2200/B2600 (SE-5 and LX models with factory installed bumpers) JM2UF*1**J0336193 - 391603
WARRANTY INFORMATION
Customer Comment Code:
99
Damage Code:
99
Part Number of Main Cause:
UB39 50 074 (Bolt)
Process Number:
B8039A
Operation Number:
XX0275RX
Labor Hours:
0.2 Hr.
Quantity:
0
