CX-7 L4-2.3L Turbo (2007)
Door Lock Cylinder: Service and Repair
FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the following parts:
1. Inner garnish
2. Front door trim
3. Front outer handle
3. Remove the rod from the front door key cylinder.

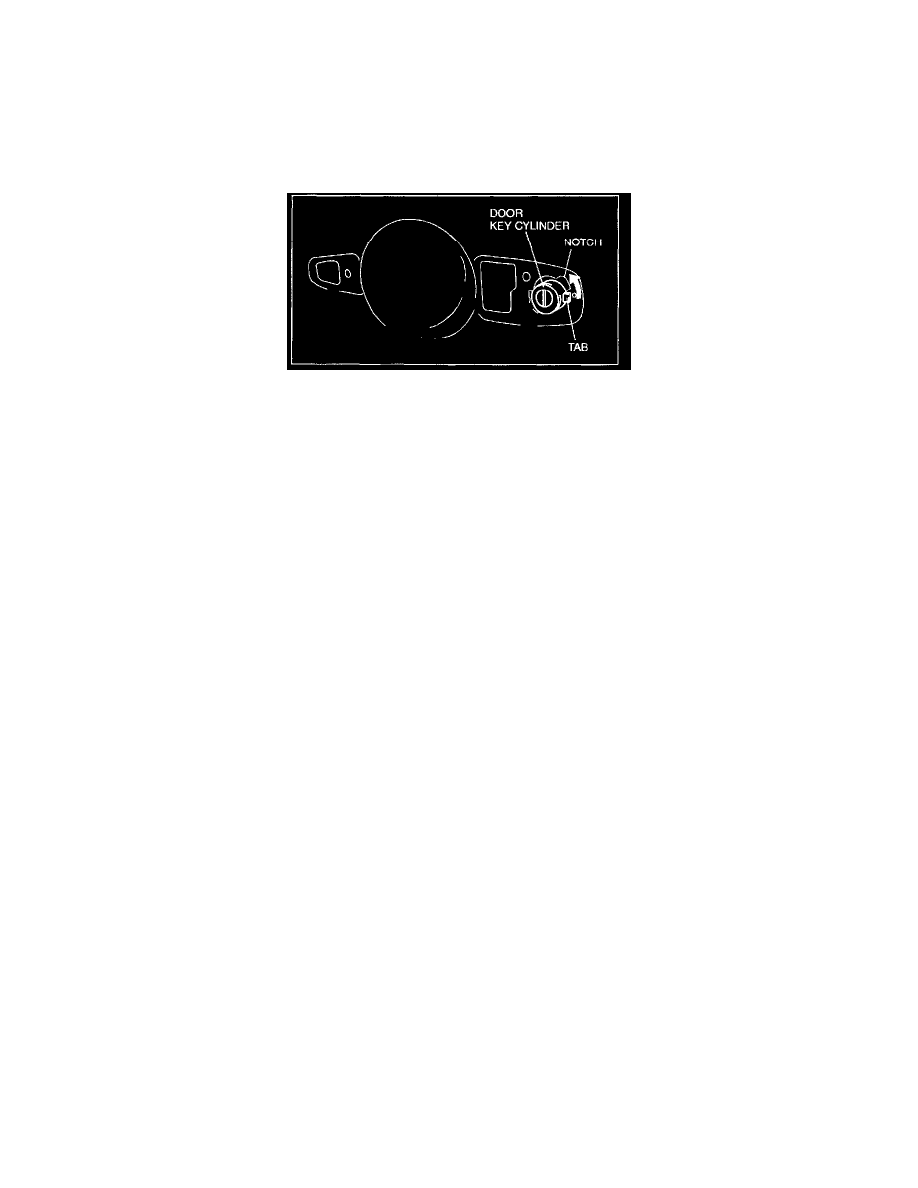

4. Turn the key cylinder in the direction indicated by the arrow and move the tab to the notch.
5. Pull the front door key cylinder outward to remove it.
6. Install in the reverse order of removal.
