CX-7 L4-2.3L Turbo (2007)
Cabin Ventilation Duct: Service and Repair
EXTRACTOR CHAMBER REMOVAL/INSTALLATION
1. Remove the rear combination light.
2. Remove the rear bumper.

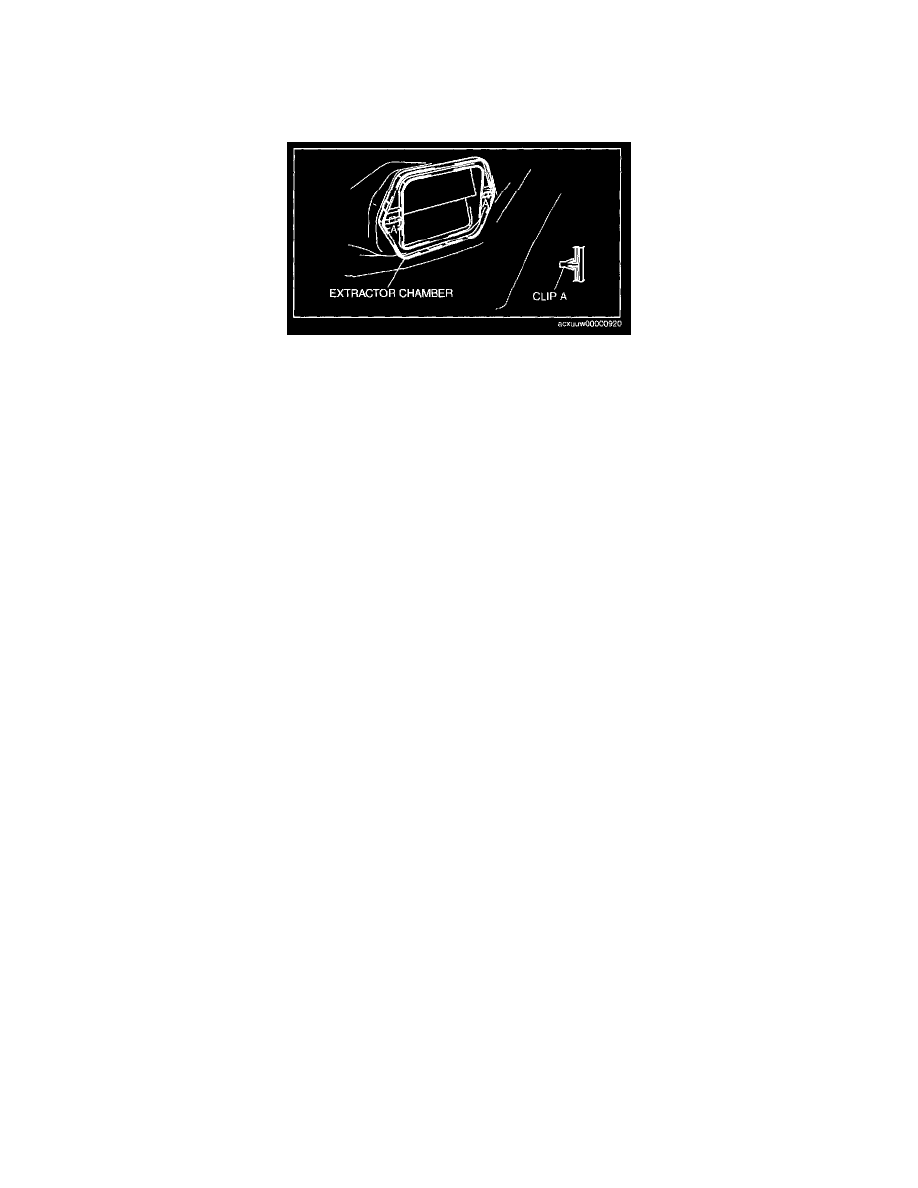

3. Remove clip A using a fastener remover and then remove the extractor chamber from the vehicle.
4. Install in the reverse order of removal.
