CX-7 FWD L4-2.3L Turbo (2010)
CAUTION:
-
Being careful not to damage the adhesive sponge rubber or adhesive polyurethane, remove adhesive polyurethane completely.

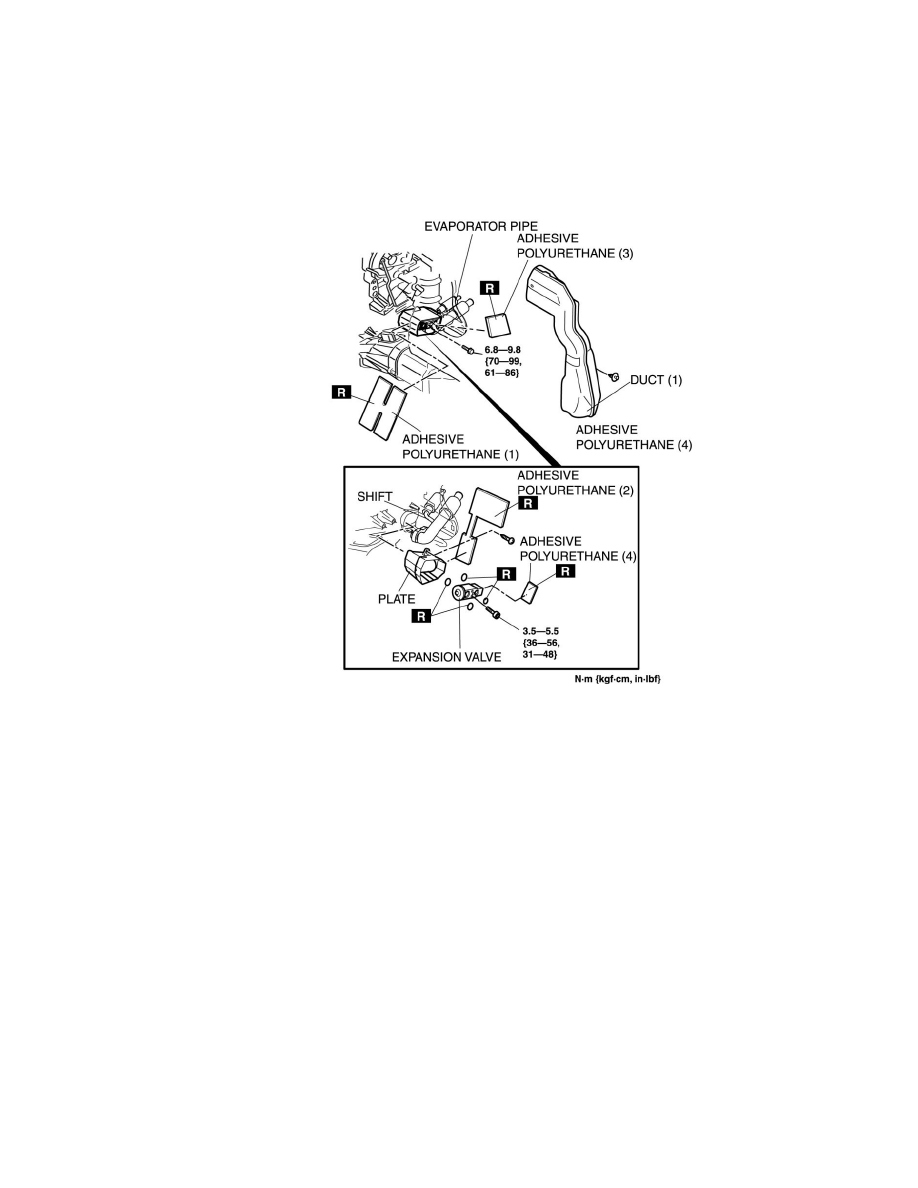

15. Remove the adhesive polyurethane (3). See: Evaporator Core/Service and Repair/Overhaul
CAUTION:
-
Being careful not to damage the adhesive sponge rubber or adhesive polyurethane, remove adhesive polyurethane completely.
16. Remove the adhesive polyurethane (4). See: Evaporator Core/Service and Repair/Overhaul
17. Install in the reverse order of removal.
18. Perform the refrigerant system performance test. See: Testing and Inspection/Component Tests and General Diagnostics/Refrigerant System
Performance Test
