CX-7 FWD L4-2.3L Turbo (2010)
Power Transistor HVAC: Testing and Inspection
POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) INSPECTION [FULL-AUTO AIR
CONDITIONER]

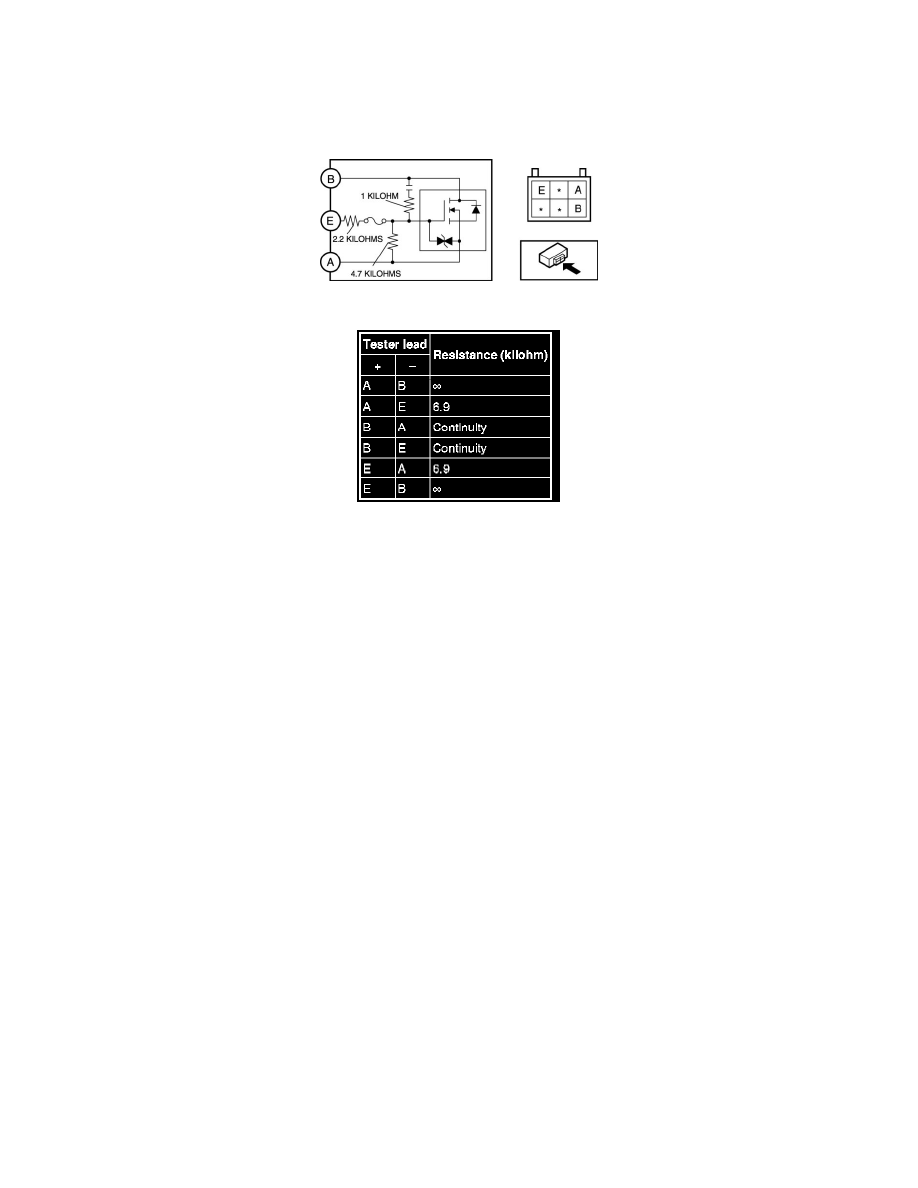

1. Verify that the resistance between the terminals of the power MOS FET is as shown in the table.
-
If there is any malfunction, replace the power MOS FET.
