CX-7 FWD L4-2.3L Turbo (2010)

Page 1
background image

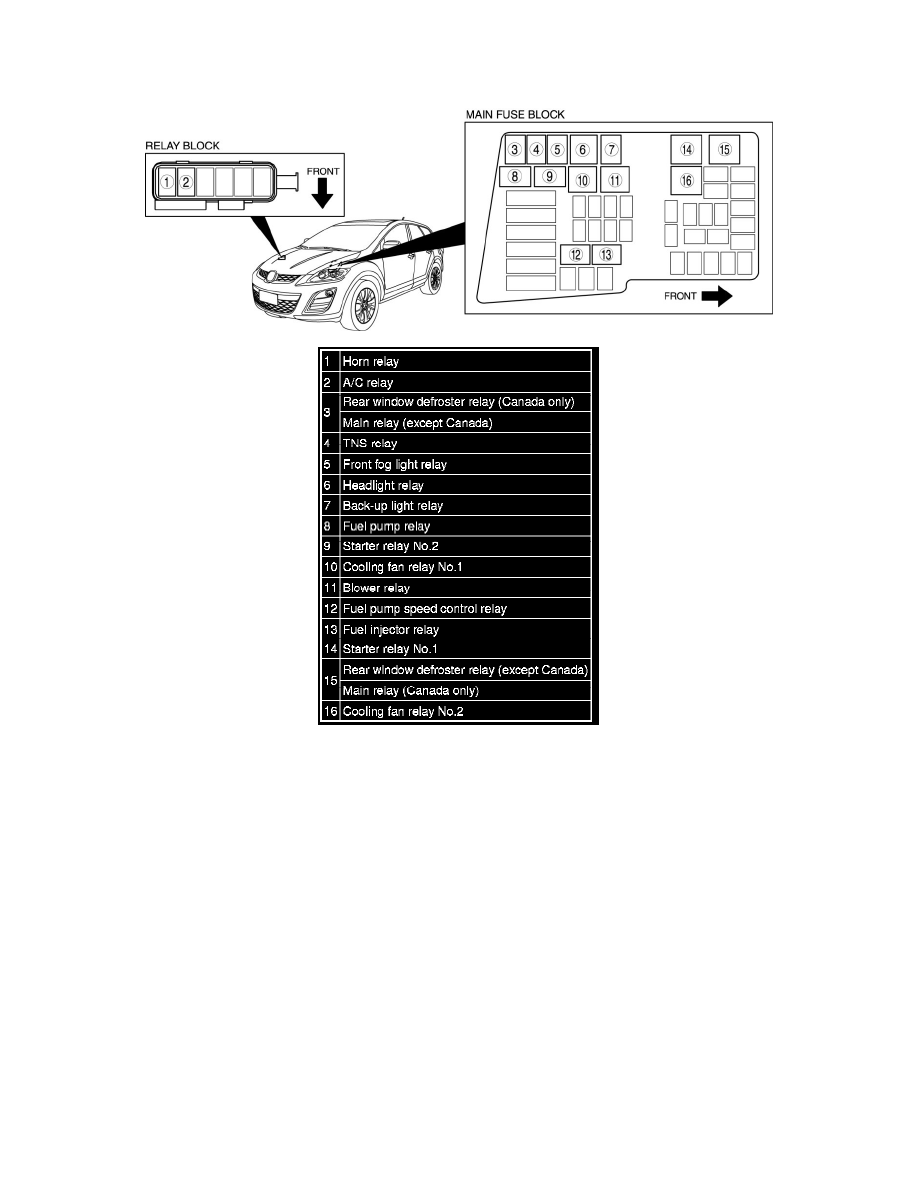

Main Relay (Computer/Fuel System): Locations

RELAY LOCATION [L3 WITH TC]
