Mazdaspeed3 L4-2.3L Turbo (2010)
Cabin Ventilation Grille: Service and Repair

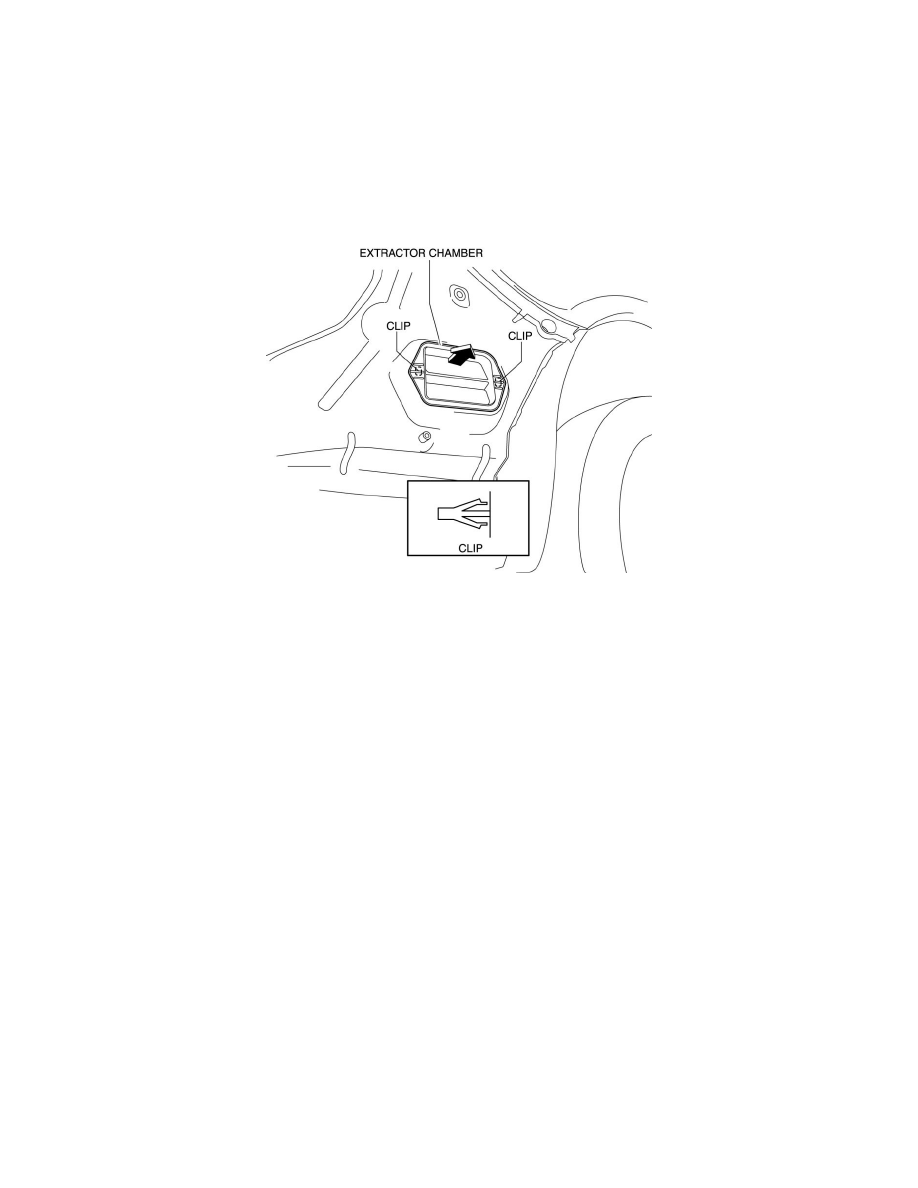

EXTRACTOR CHAMBER REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the rear combination light. See: Lighting and Horns/Tail Lamp/Service and Repair/Rear Combination Light Removal/Installation
3. Remove the rear bumper. See: Bumper/Rear Bumper/Service and Repair/Removal and Replacement
4. Remove the clips.
5. Install in the reverse order of removal.
