Mazdaspeed3 L4-2.3L Turbo (2010)
Front Door Panel: Removal and Replacement
Front Door Trim Removal/Installation
FRONT DOOR TRIM REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the inner garnish. (See See: Inner Garnish Removal/Installation)

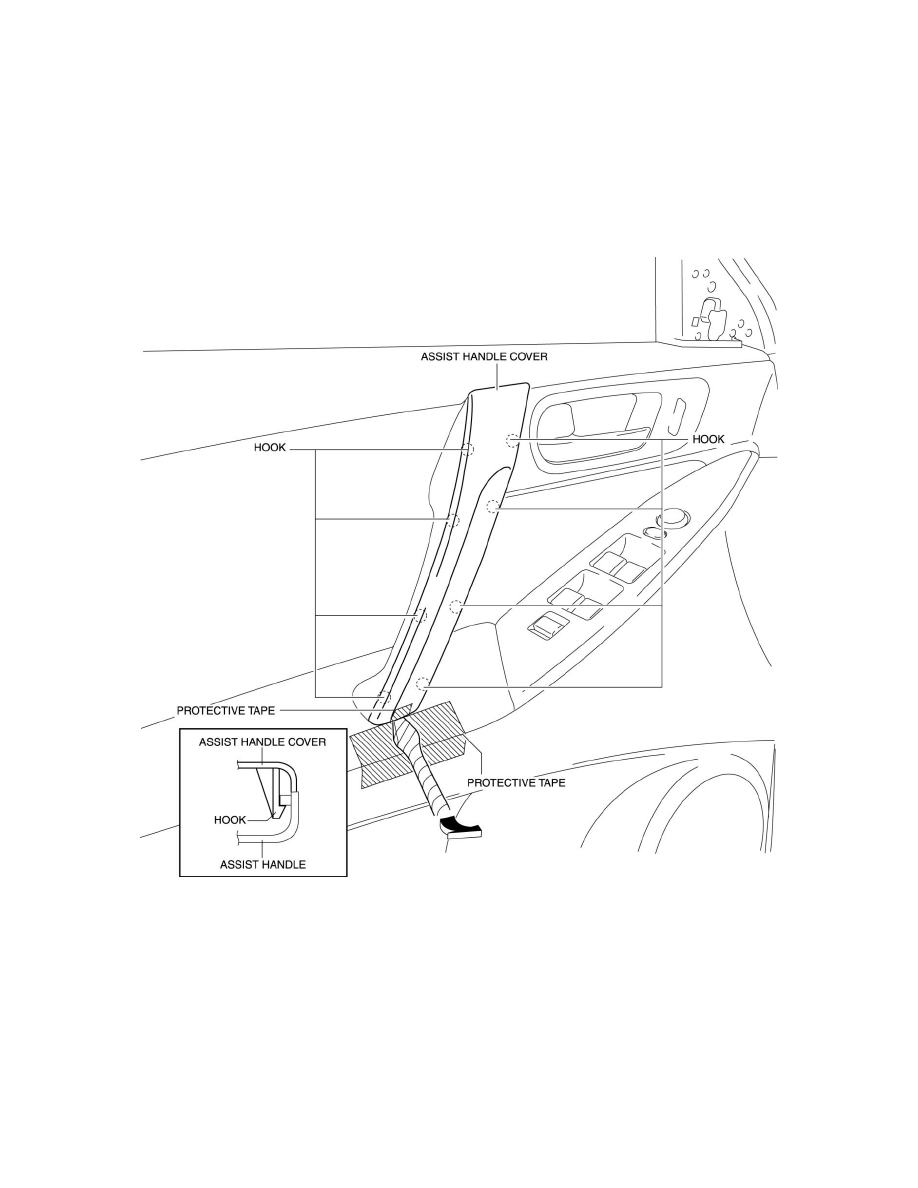

3. Move the hook in the direction of arrow shown in the figure using a tape-lapped flathead screwdriver and detach it from the front door trim.
CAUTION:
-
Affix protective tape to the front door trim and assist handle cover to prevent damage.
4. Pull the inner handle cover in the direction of arrow and remove it while detaching tabs.
