Mazdaspeed3 L4-2.3L Turbo (2010)
Front Fender: Service and Repair
FRONT FENDER PANEL REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the following parts:
a. Front bumper See: Bumper/Front Bumper/Service and Repair/Removal and Replacement/Front Bumper Removal/Installation
b. Front combination light See: Lighting and Horns/Headlamp/Service and Repair
c. Front fender molding See: Cowl/Cowl Moulding / Trim/Service and Repair/Cowl Grille Removal/Installation
d. Side step molding

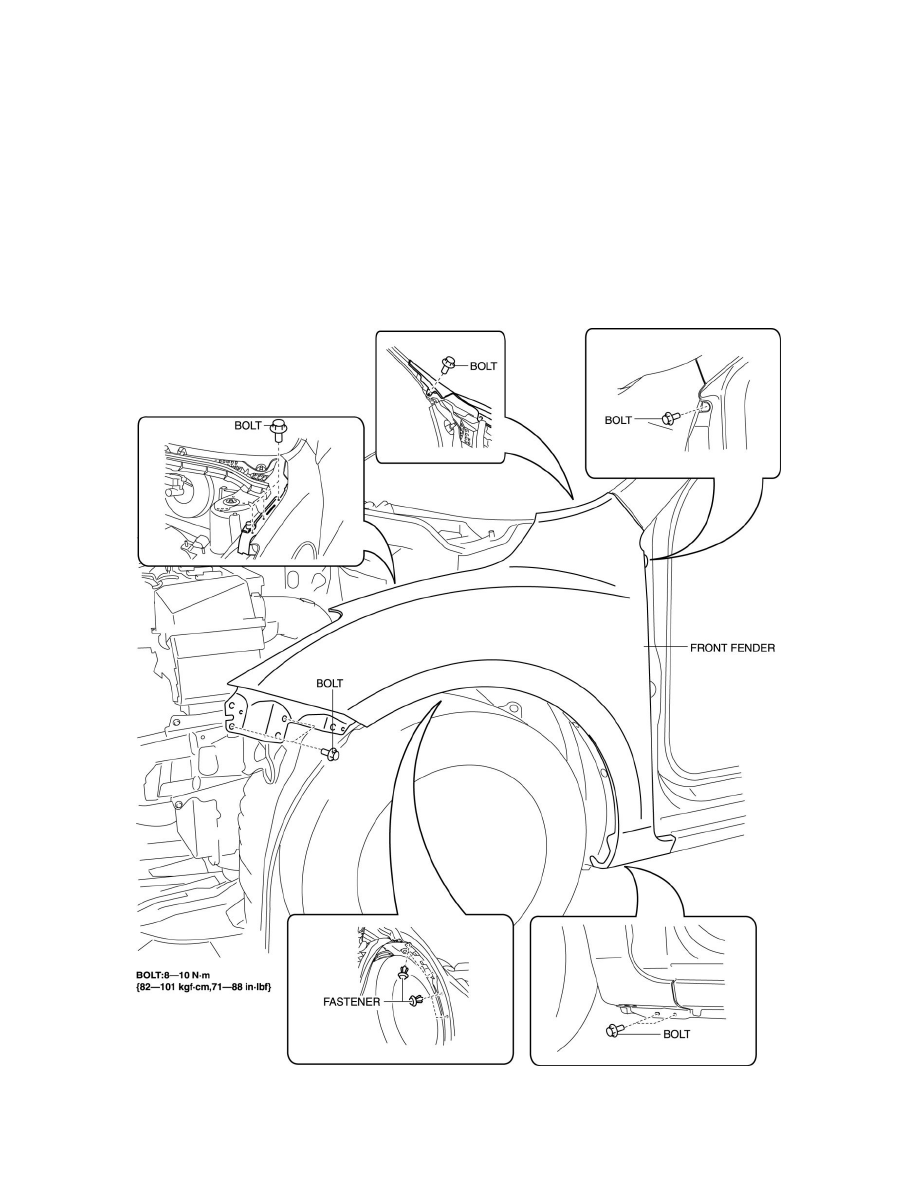

3. Remove fasteners and bolts, then remove the front fender panel in the direction of the arrow shown in the figure.
4. Install in the reverse order of removal.
5. Adjust the headlight aiming. (See See: Lighting and Horns/Headlamp/Adjustments)
