Mazdaspeed3 L4-23L Turbo (2010) - Spoilers, Flaps, and Air Dams Repair
Mud Flap: Service and Repair
FRONT MUDGUARD REMOVAL/INSTALLATION

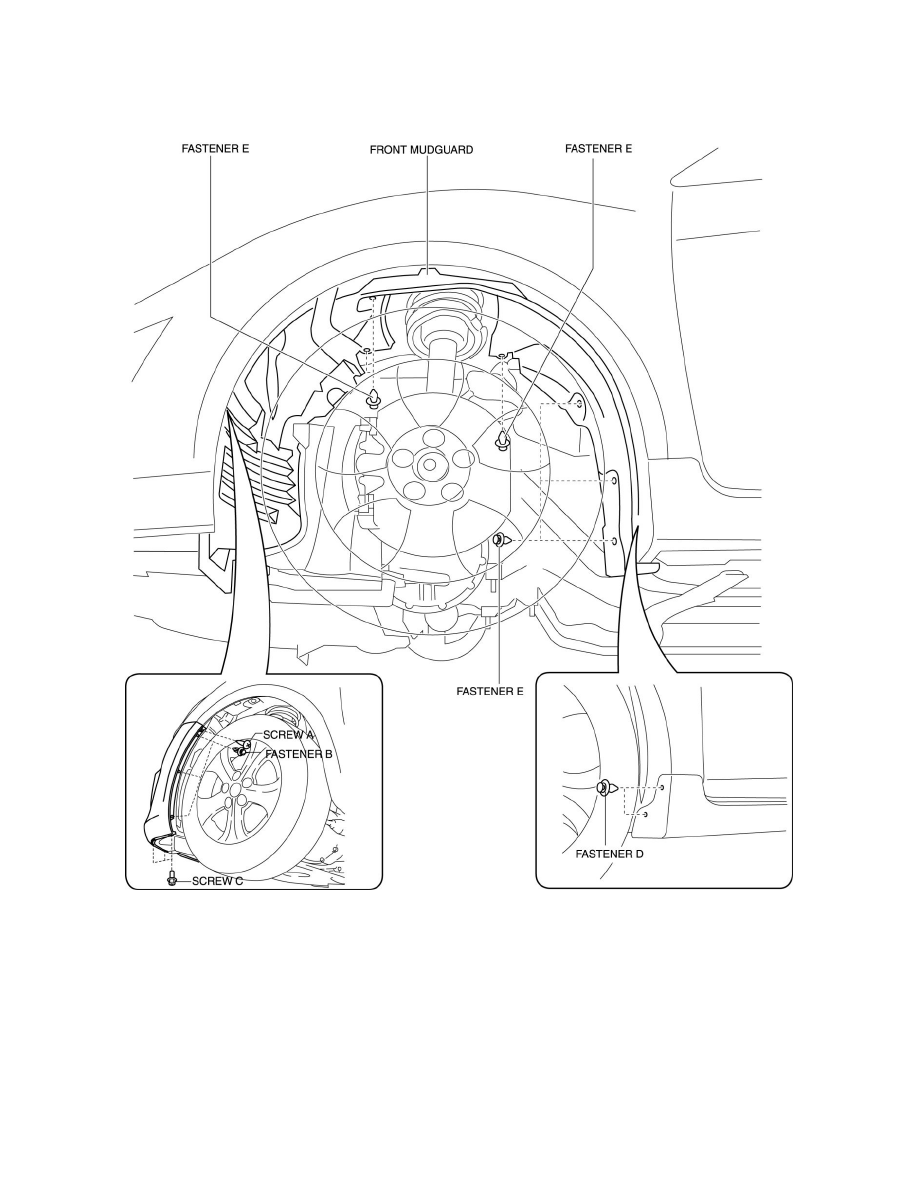

1. Remove screw A, fasteners B, screws C, fasteners D, and E.
2. Remove the front mudguard in the direction of the arrow shown in the figure.
