Mazdaspeed3 L4-2.3L Turbo (2010)
Towing Information: Service and Repair
TOWING
-
Proper lifting and towing are necessary to prevent damage to the vehicle. Government and local laws must be followed.
-

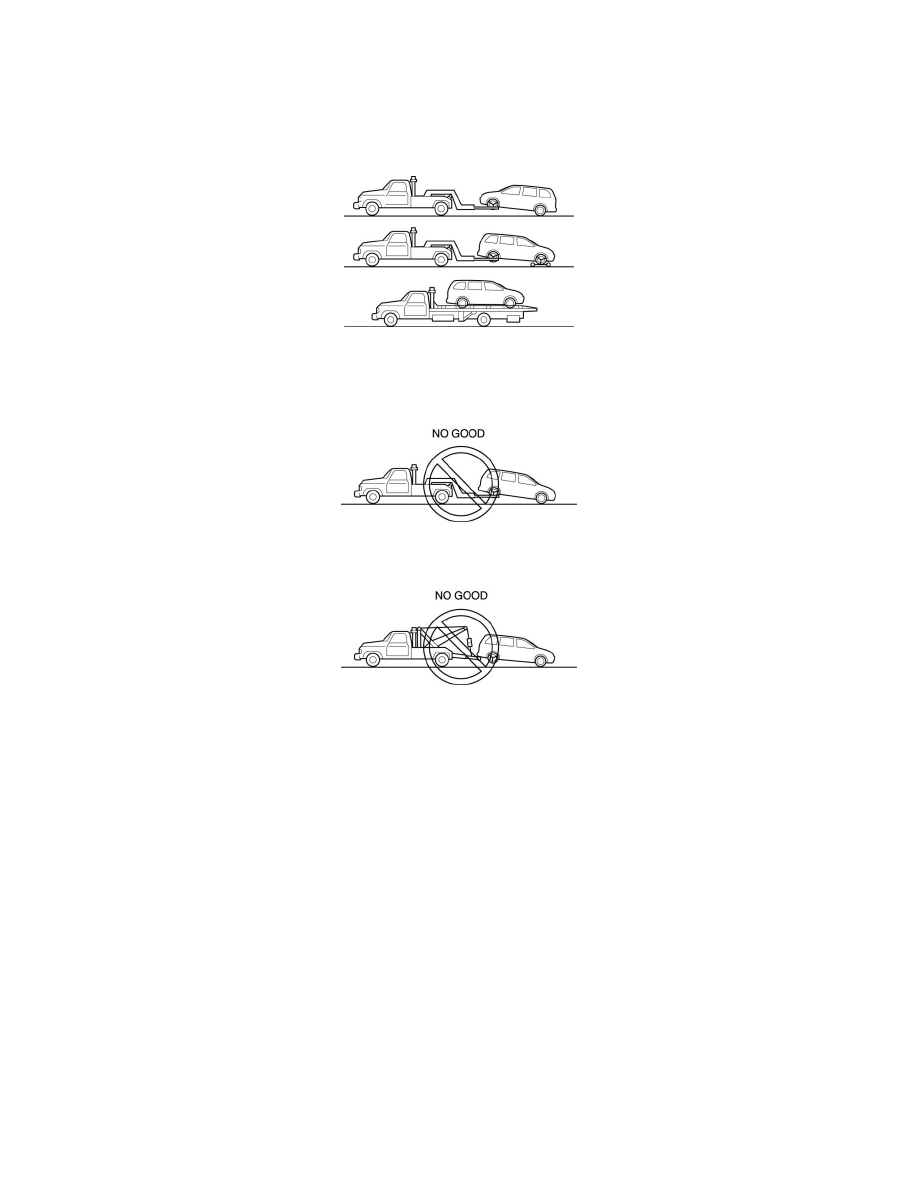

A towed vehicle usually should have its drive wheel (front wheels) off the ground. If excessive damage or other conditions prevent this, use wheel
dollies.
-
When towing with the rear wheels on the ground, release the parking brake.
CAUTION:
-
Do not tow the vehicle pointed backward with driving wheels on the ground. This may cause internal damage to the transaxle.
CAUTION:
-
Do not tow with sling-type equipment. This could damage your vehicle. Use wheel-lift or flatbed equipment.
Vehicle Securing Position
-
When transporting the vehicle by flat bed tow truck or trailer, secure the vehicle to the trailer using the holes and left tie-down loop shown in the
figure.
