Millenia L V6-2.5L DOHC (1997)
9. Verify that all timing marks are correctly aligned. If not, remove the timing belt and repeat from Timing Belt Auto Tensioner Installation Note.

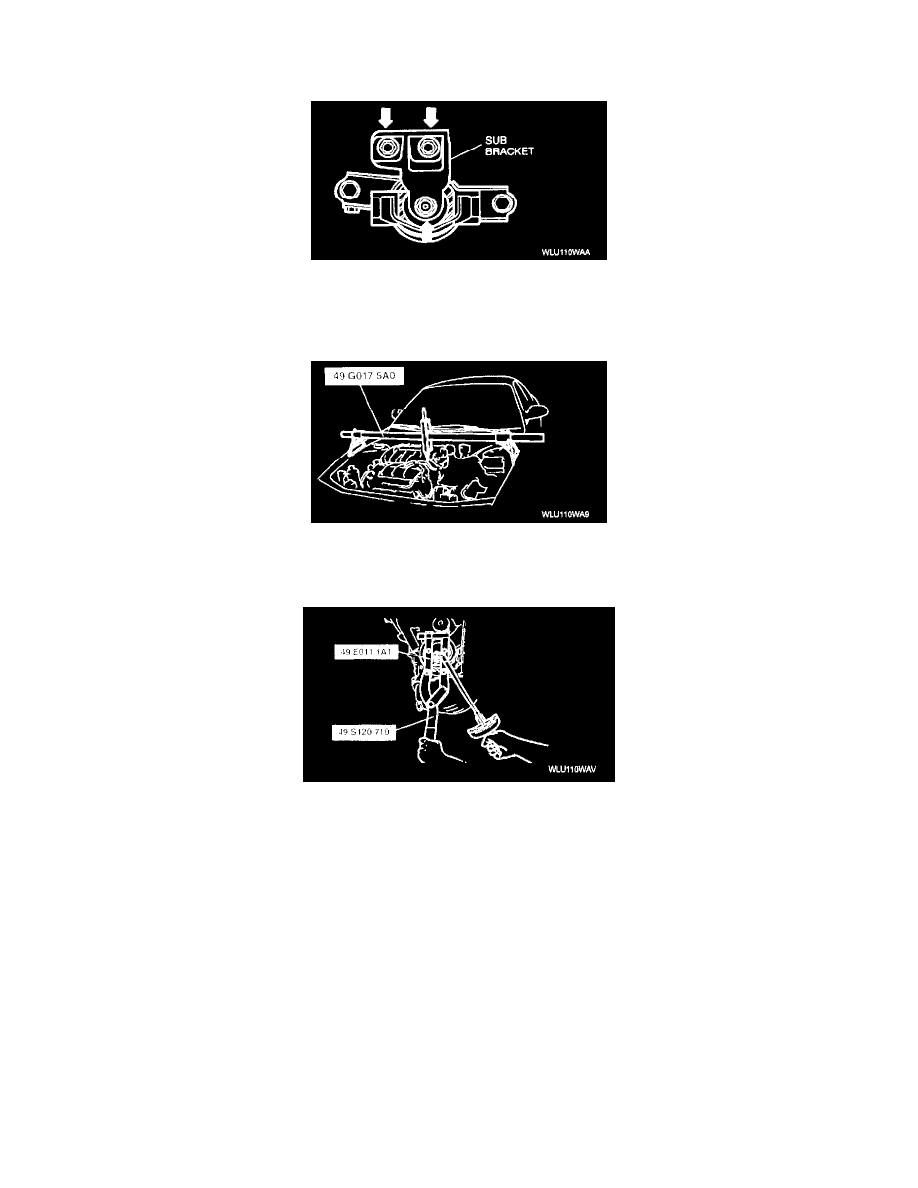

No.3 ENGINE MOUNT SUB BRACKET INSTALLATION NOTE
1. Install the No.3 engine mount sub bracket.
Tightening torque:
75 - 104 Nm (55 - 77 ft. lbs.)
2. Remove the SST (engine support).
CRANKSHAFT PULLEY INSTALLATION NOTE
1. Remove the crankshaft pulley bolt.
2. Install the crankshaft pulley and hand tighten the crankshaft pulley bolt.
3. Install the SST to the crankshaft pulley.
4. Tighten the crankshaft pulley bolt.
Tightening torque:
157 - 166 Nm (116 - 122 ft. lbs.)
