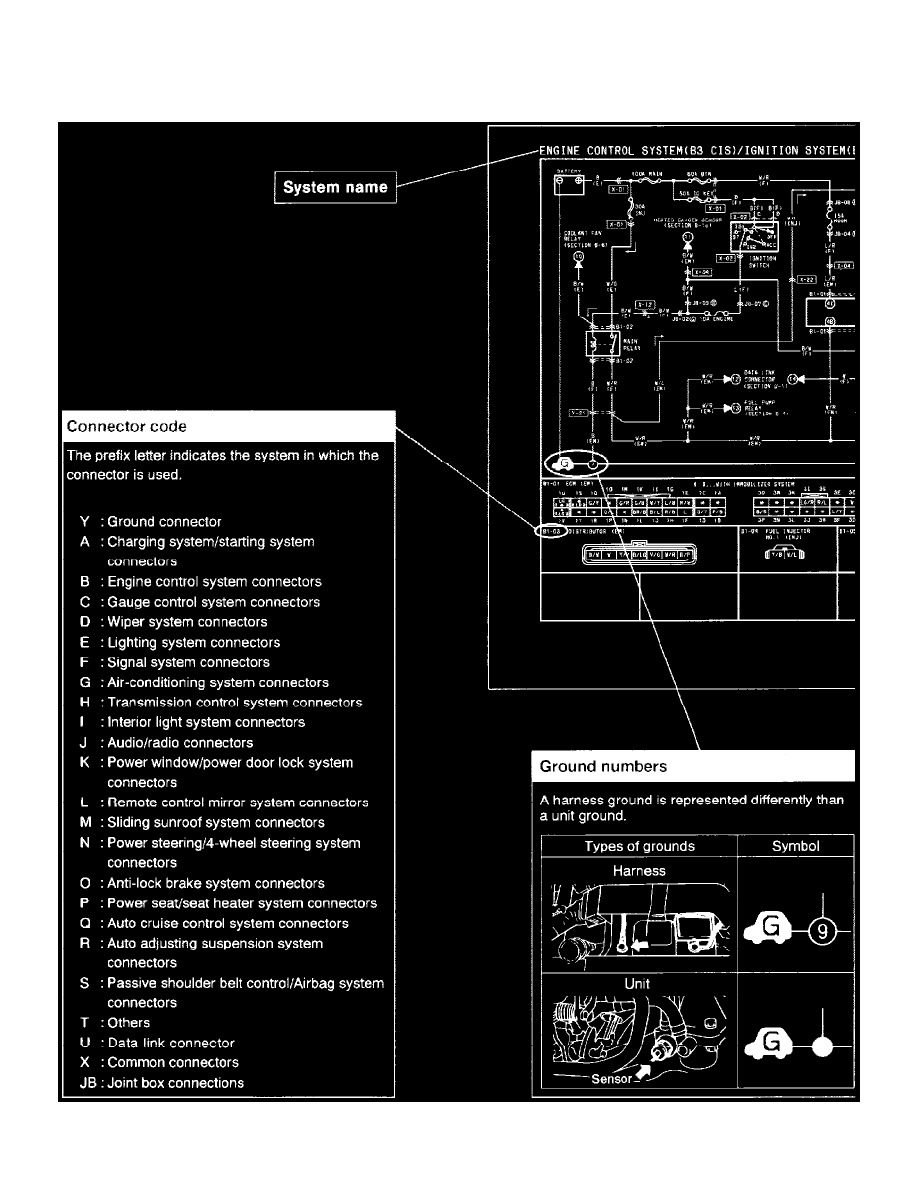

Fuel Gauge Sender: Diagram Information and Instructions

System Circuit Diagram/Connector Diagram

System Circuit Diagram/Connector Diagram (Part 1 Of 2)
