Millenia L V6-2.5L DOHC (1997)
Air Bag: Service and Repair
Removal and Installation
Driver-Side Air Bag Module
WARNING:
^
Handling the air bag module improperly can accidently deploy the air bag, which may seriously injure you. Read SERVICE
WARNINGS, before handling the air bag module.
^
Installing the driver-side air bag module when a service code 6 is not indicated can accidently deploy, the air bag, which can cause serious
injury. Carry out the proper troubleshooting procedures and verify that service code 6 is indicated before installing the driver-side air
bag module.
1. Carry out the "Before Servicing" procedure.

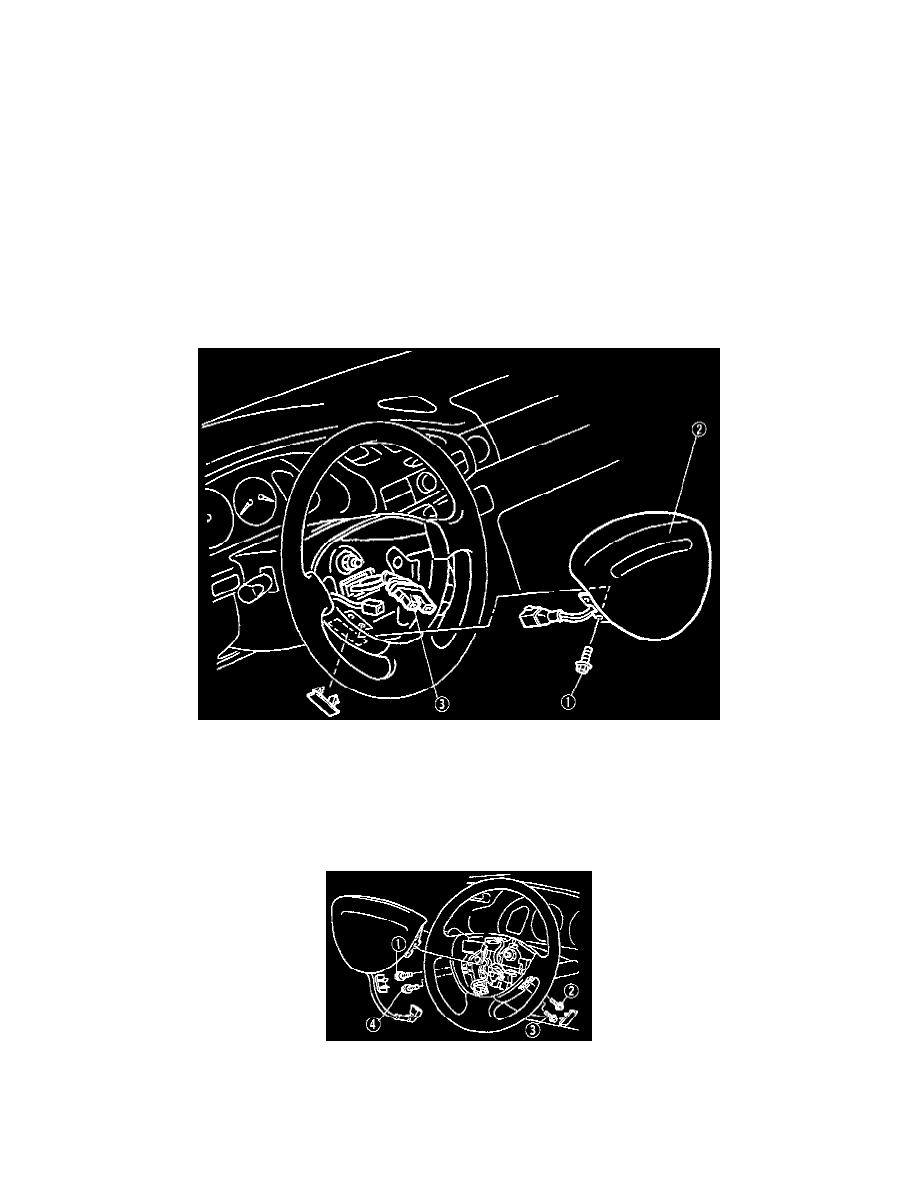

2. Remove in the order shown.
3. Install in the reverse order of removal, referring to Installation note.
4. Follow the troubleshooting flowchart to verify that the air bag system is operating normally.
1. Bolt
2. Driver-side air bag module
3. Connector
Installation Note
Bolt
^
Tighten the bolts in the order shown.
Tightening Torque
8.9-12.7 N.m {90-130 kgf.cm, 79-112 in.lbf}
