Headlamp Switch: Testing and Inspection

Inspection

1. Remove the combination switch.

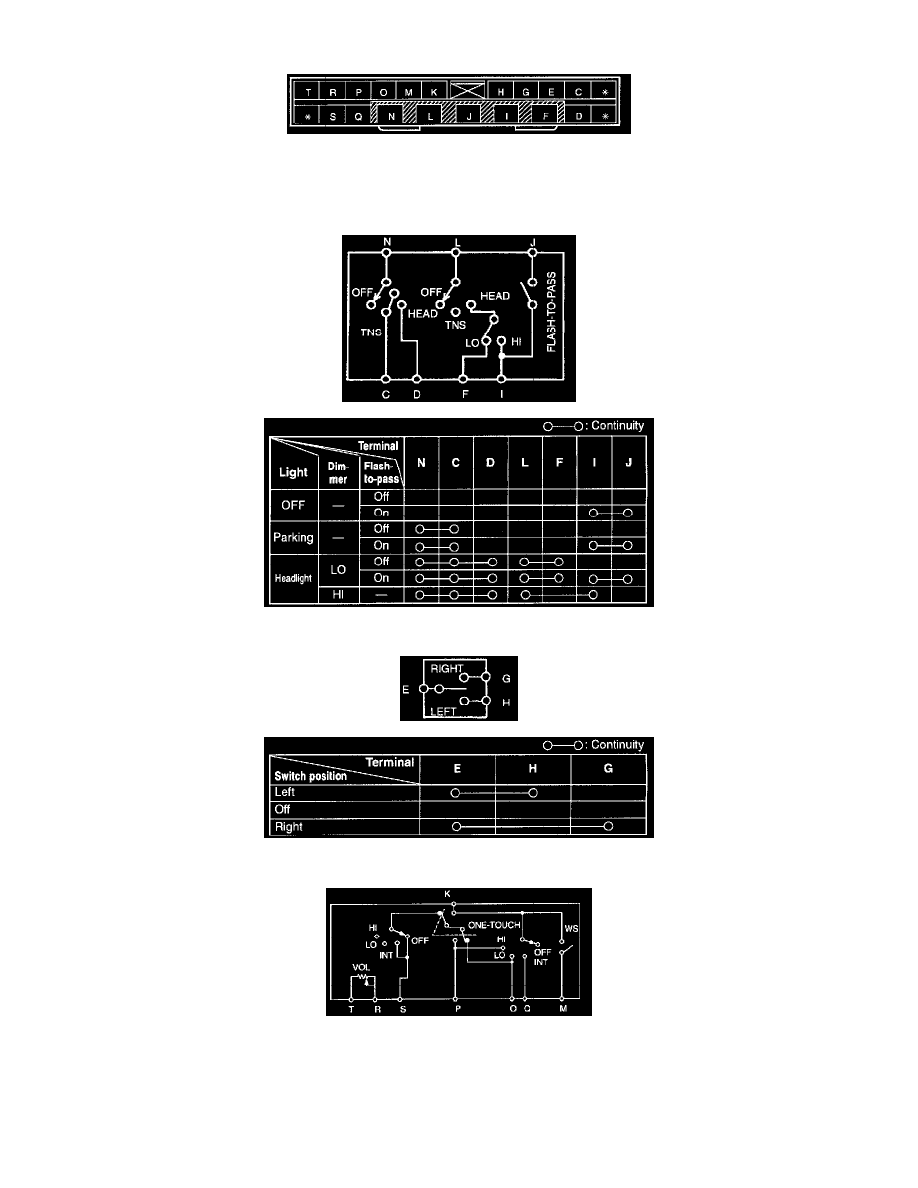

2. Check for continuity between the combination switch terminals as indicated.
3. If not as specified, replace the necessary parts.

Headlight Switch

Turn Switch
