Millenia L V6-2.5L DOHC (1997)
Wheel Bearing: Service and Repair
Front
PREINSPECTION OF WHEEL BEARING PLAY
1. Remove the brake caliper assembly and disc plate.
2. Position a dial indicator against the wheel hub. Push and pull the wheel hub by hand in the axial direction and measure the wheel bearing play.
3. If the bearing play exceeds the specification, check and adjust the locknut torque or replace the wheel bearing if necessary. Maximum wheel
bearing end play is 0.05 mm (0.002 inch).
CAUTION: Leave the nuts on the ball joint studs until removing the axle assembly. This will keep the axle weight distributed evenly and prevent
damage to the link bushings.

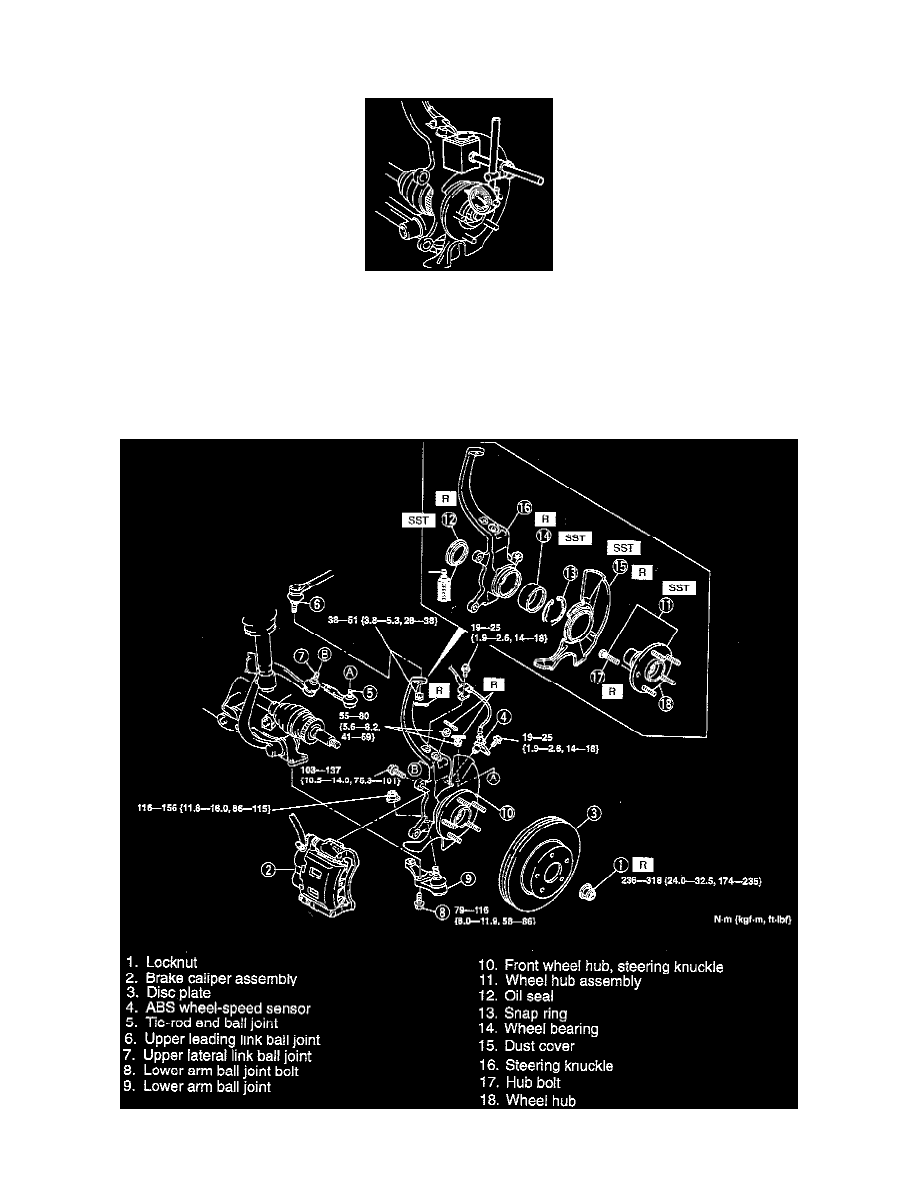

REMOVAL / INSPECTION / INSTALLATION
