MPV 4WD V6-180 2954cc 3.0L FI (1989)
Liquid Vapor Separator: Service and Repair

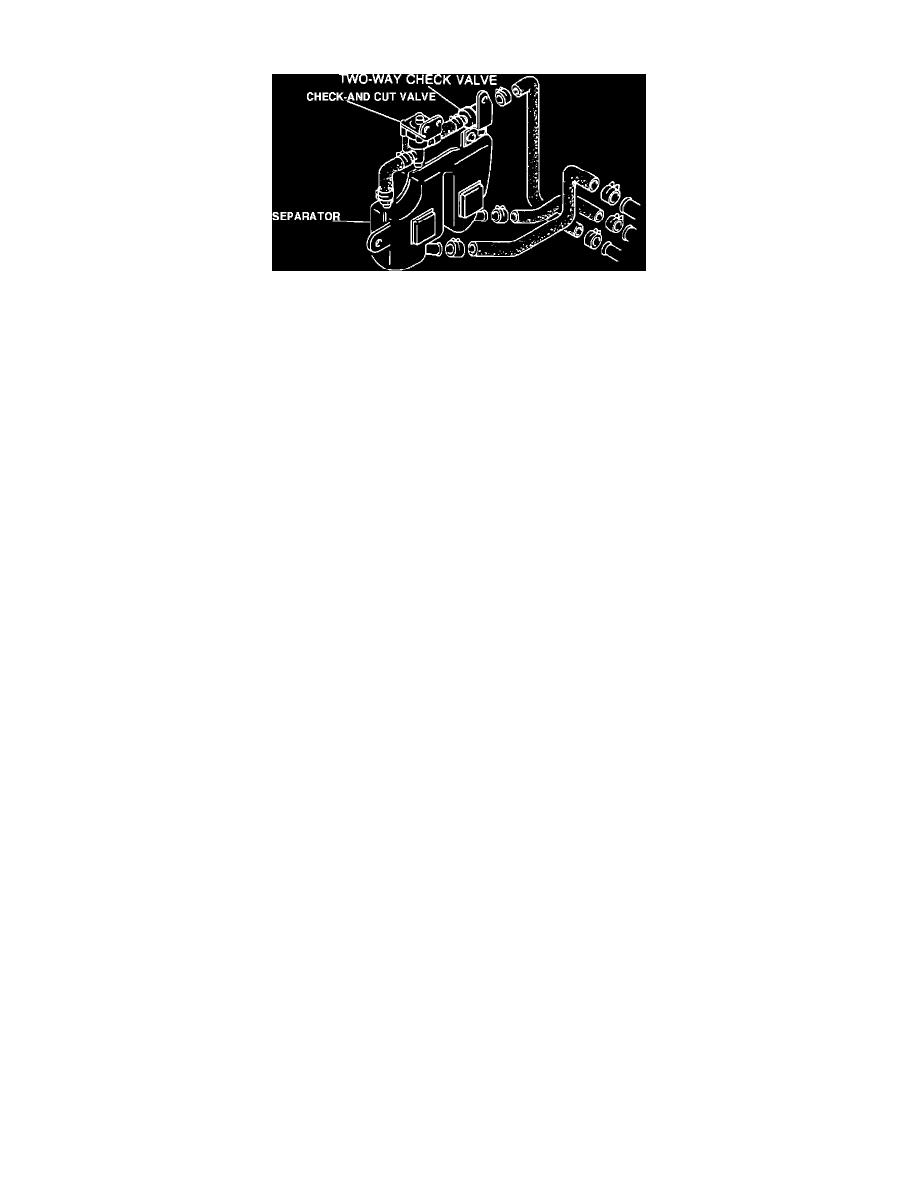

Fig. 82 Separator/Check And Cut Valve
CAUTION: Before performing the following procedure, release the fuel pressure from the fuel system. To reduce the possibility of injury or fire,
keep sparks cigarettes and open flame away from the fuel when removing parts.
1.
Pull back the right rear side interior trim panel.
2.
Remove the cover.
3.
Mark the hose locations and disconnect the hoses.
4.
Remove the separator along with the two-way check valve and check-and-cut valve.
5.
Remove the separator.
6.
Install in reverse order.
NOTE:
When connecting the hoses, be sure to connect them in the correct positions.
