Rear Defogger Relay: Testing and Inspection

1. Remove the rear window defroster relay.

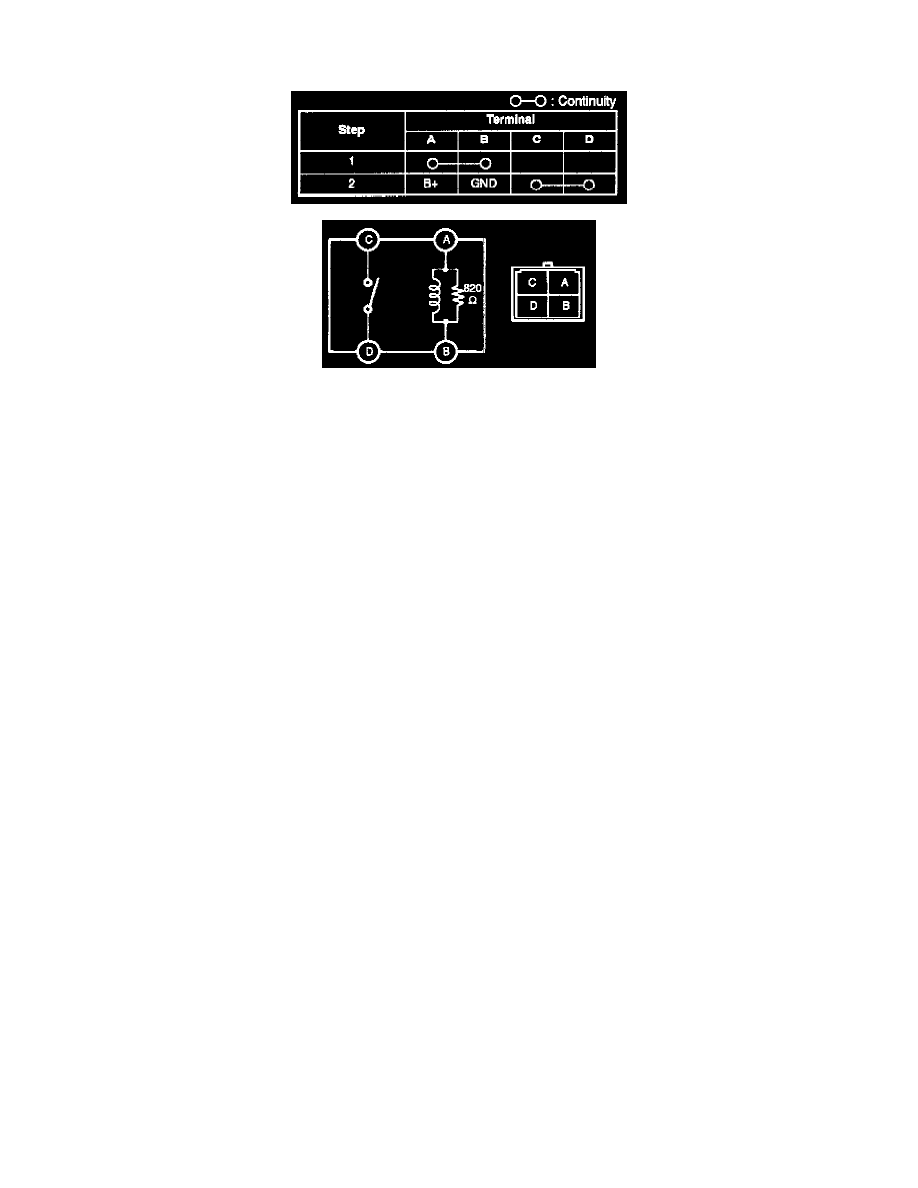

2. Check for continuity between the rear window defroster relay terminals by using an ohmmeter.
3. If not as specified, replace the rear window defroster relay.
