Windshield: Service and Repair

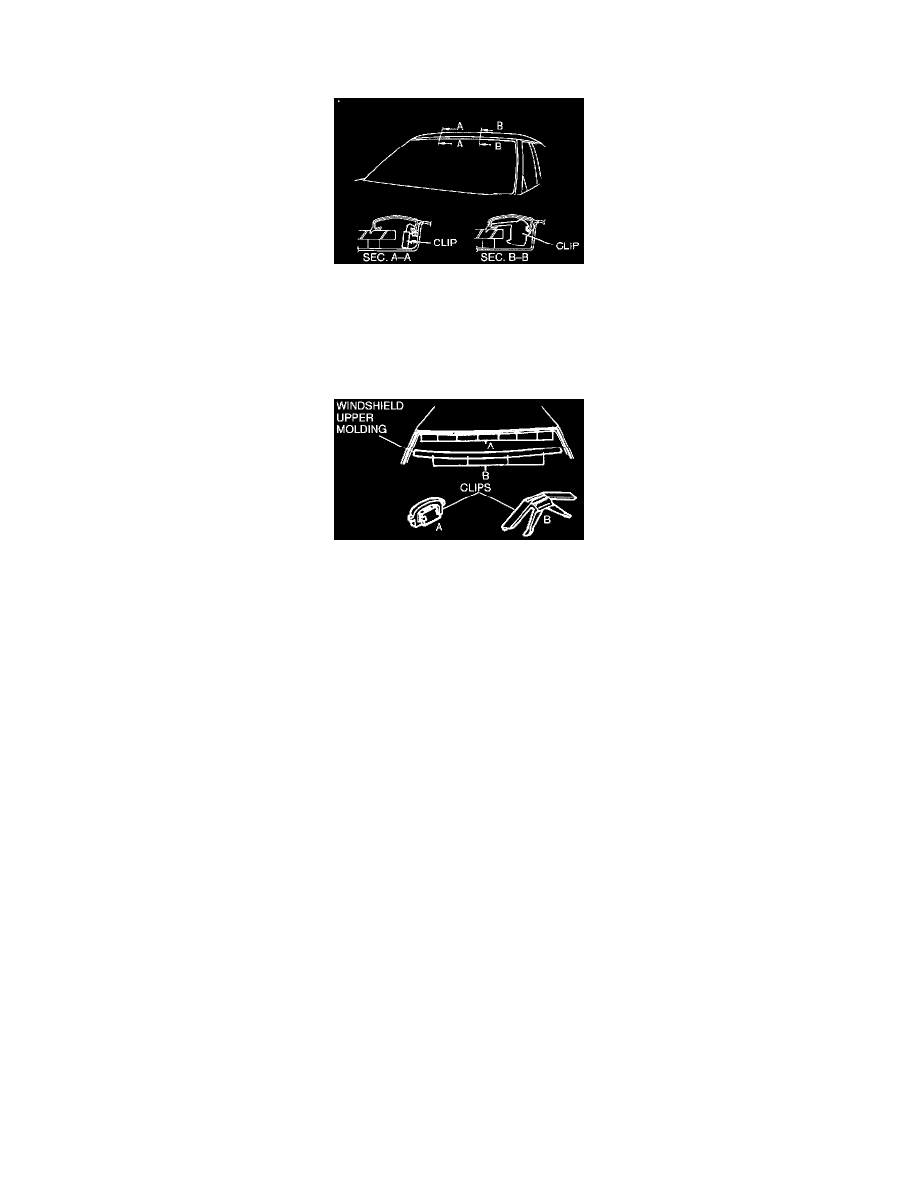

Windshield Upper Molding

Removal

1. Remove the windshield molding.
2. Pull the windshield upper molding forward to remove it.

Installation

1. Install clip A to the body stud and clip B to the windshield upper molding.

2. Install the windshield upper molding.
3. Install the windshield molding.
