MPV LX 2WD V6-3.0L SOHC (1998)

Page 1
background image

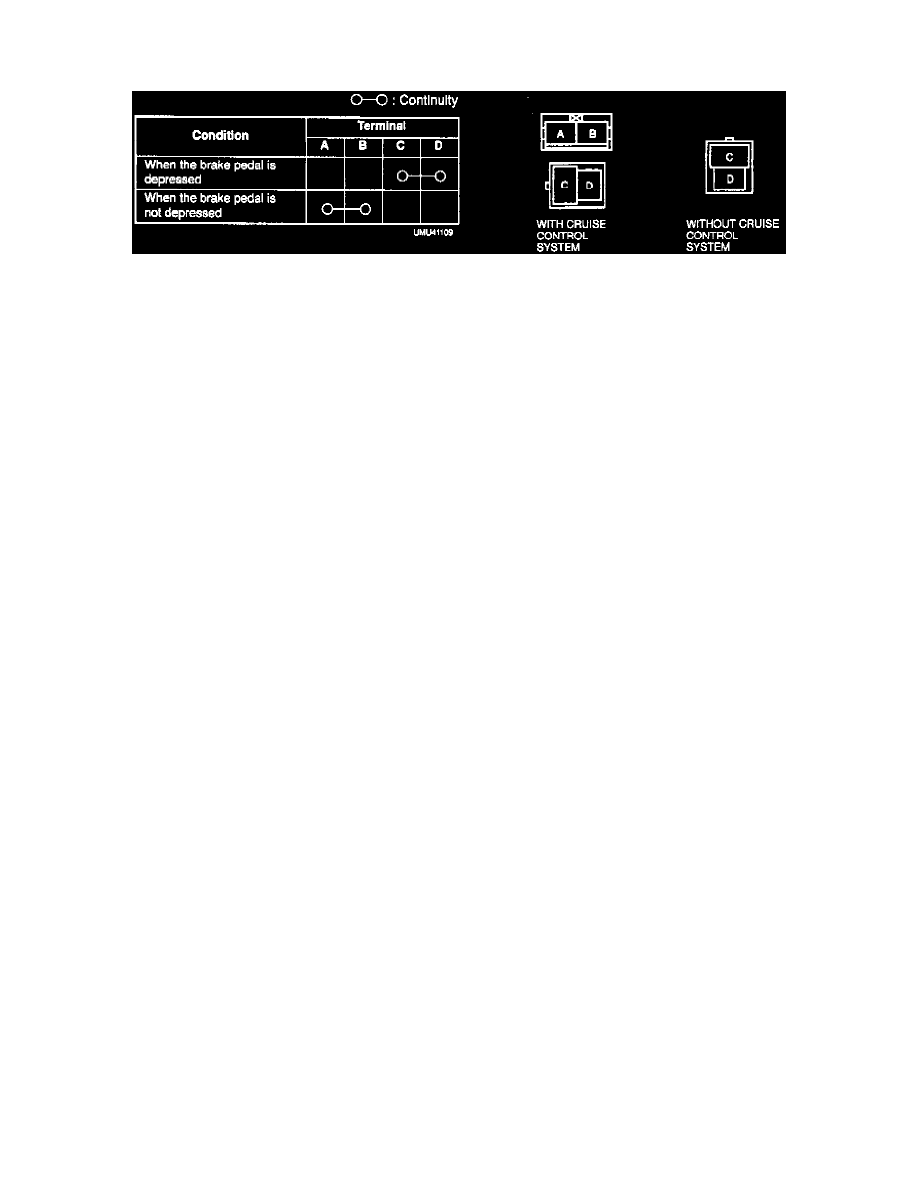

Brake Light Switch: Testing and Inspection

1. Disconnect the brake switch connector.

2. Check for continuity between the terminals of the brake switch connector.
3. If not as specified, replace the brake switch.
