Courtesy Lamp: Service and Repair

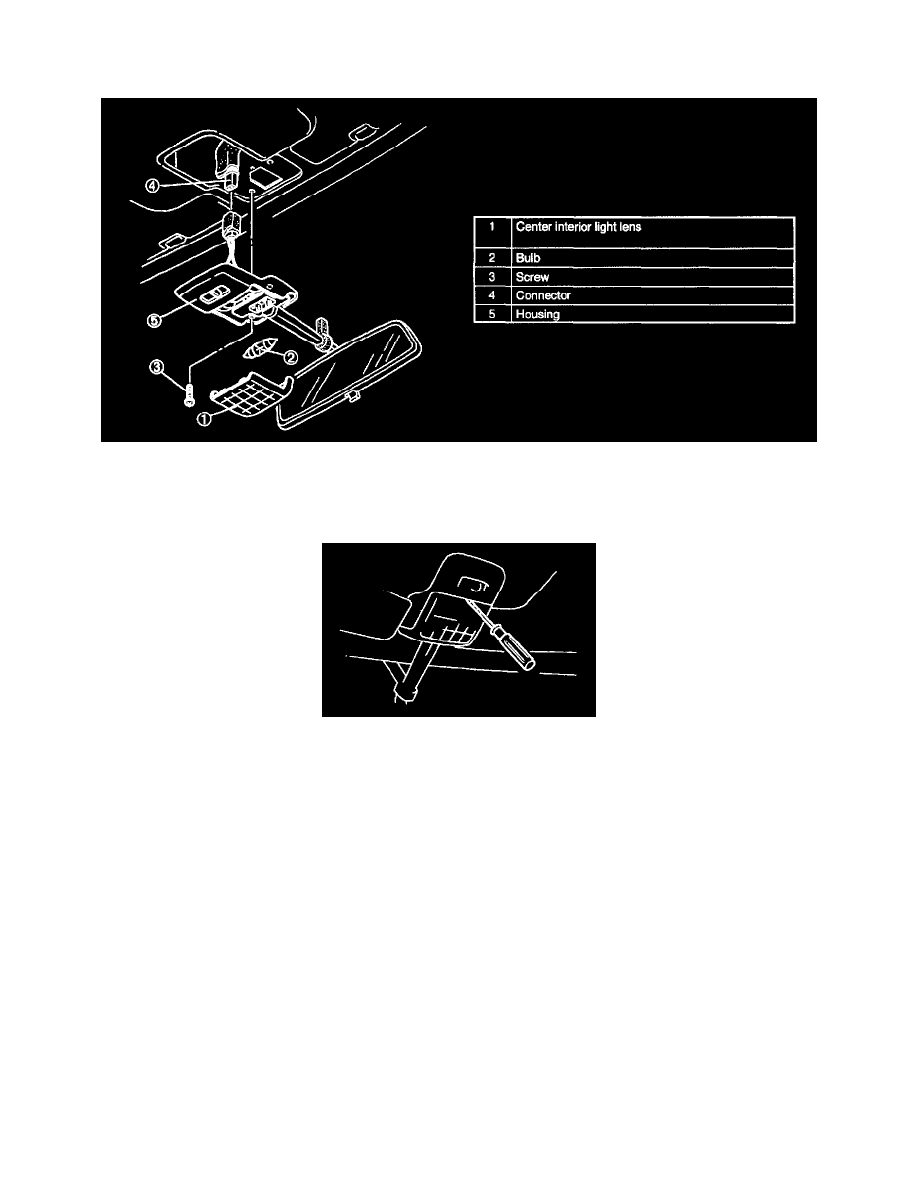

Center Interior Light

1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
4. Connect the negative battery cable.

Center Interior Light Lens Removal Note

1. Insert a flathead screwdriver which has been wrapped in tape as shown in the figure.
2. Twist the screwdriver to remove the lens.
