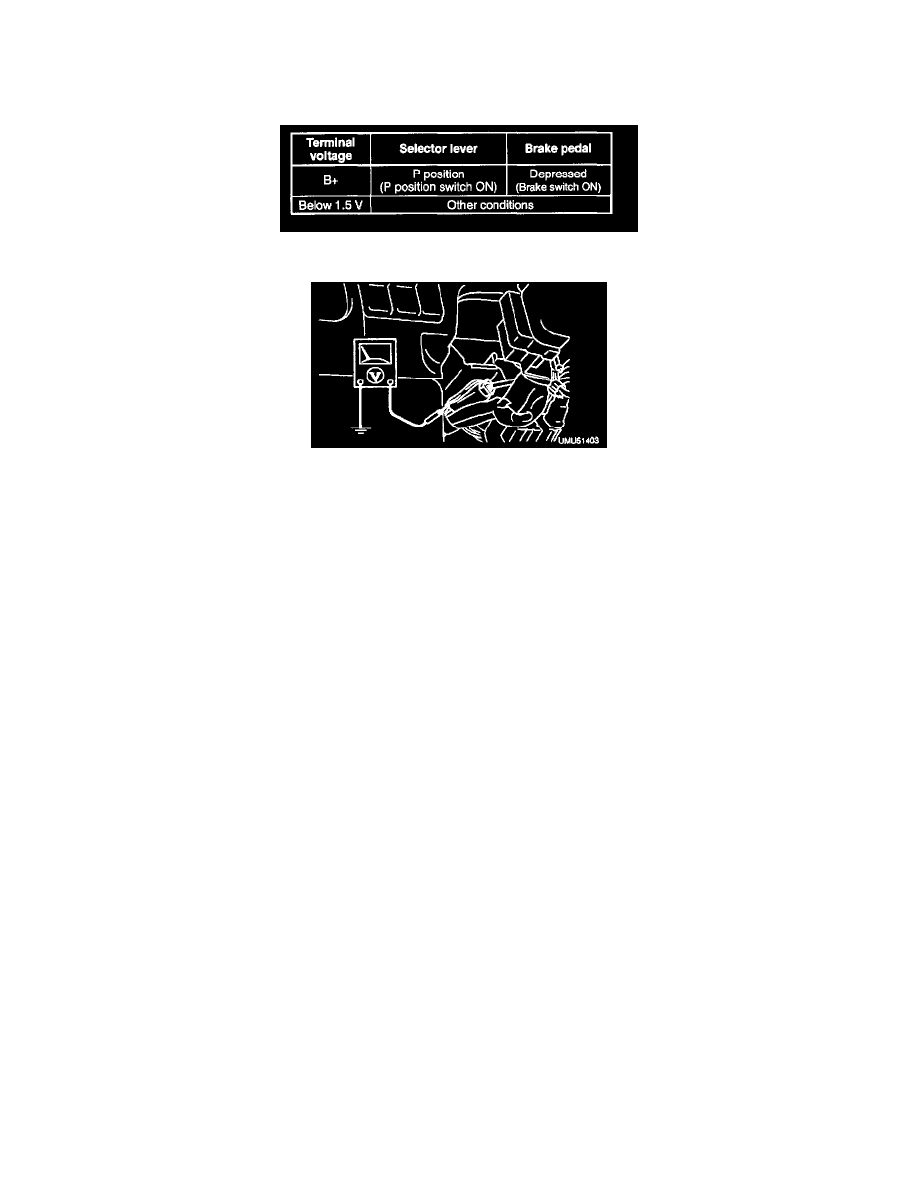

Shift Interlock Solenoid: Testing and Inspection

SHIFT LOCK ACTUATOR INSPECTION

1. Remove the column covers.
2. Turn the ignition switch to ON.

3. Measure the voltage between terminal-wire and a ground.

4. If not as specified, check the transmission range switch, brake switch, and CPU.
