Engine Control Module|Specifications|Page 1992 > < Three-Way Catalytic Converter <--> [Catalytic Converter]|Description and Operation|Page 1985

MX-3 V6-1844cc 1.8L DOHC (1993)

  • Powertrain Management
  • Relays and Modules - Powertrain Management
  • Relays and Modules - Computers and Control Systems
  • Engine Control Module
  • Component Information
  • Specifications

Page 1
background image

Engine Control Module: Specifications

Pins 1A - 1L

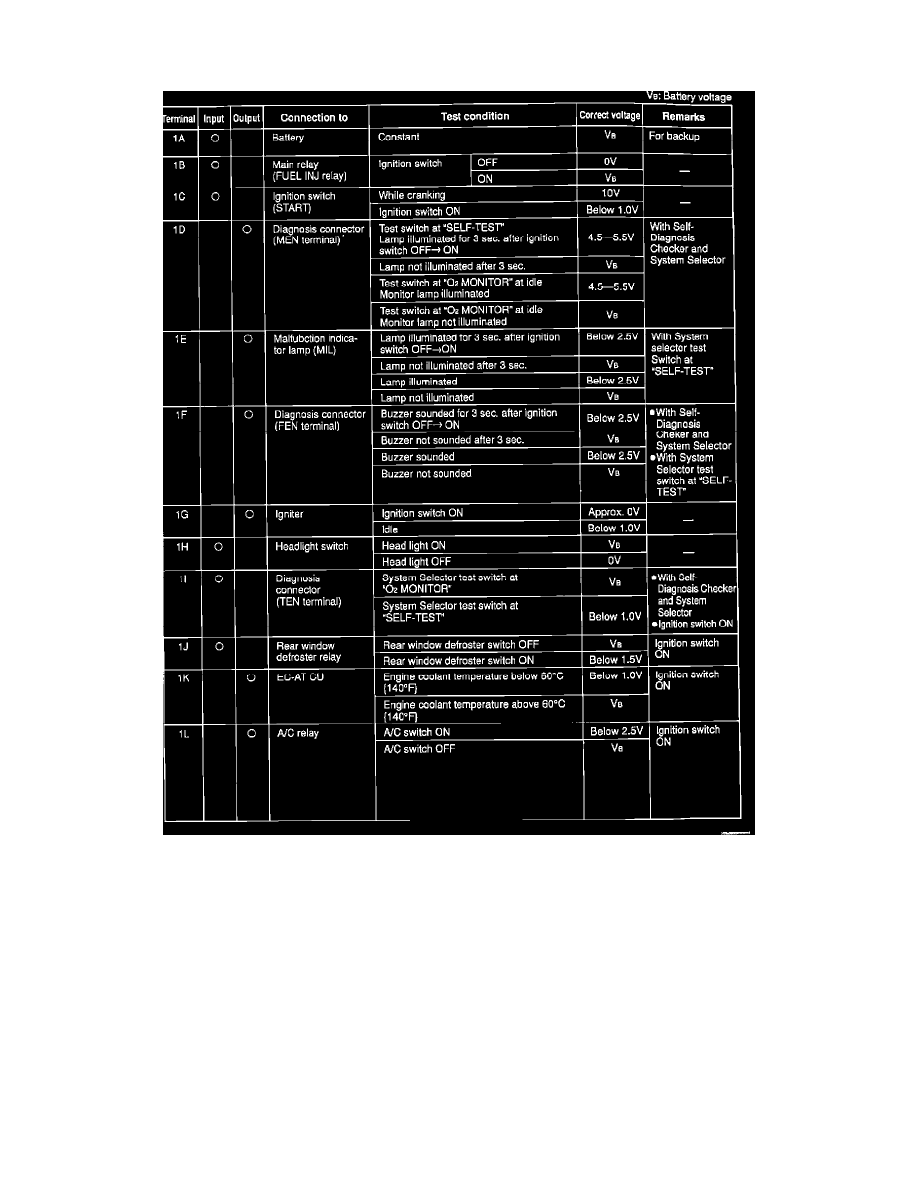

ECU Terminal Voltage Chart (Part 1)

Pins 1M - 2G
