MX-5 Miata L4-1.8L DOHC (1996)

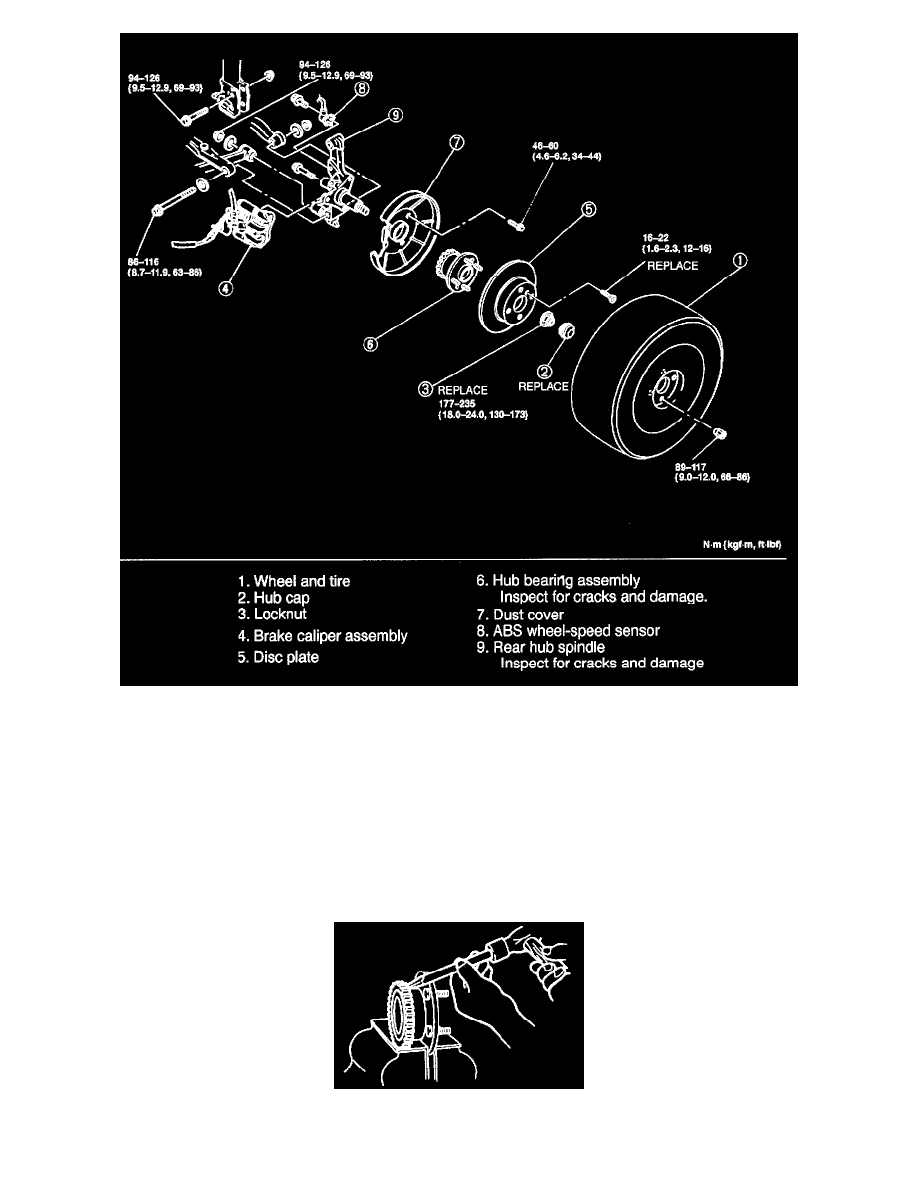

Locknut
1. knock the crimped portion of the locknut outward by using a small chisel and a hammer.
2. Lock the hub by applying the brakes.
3. Remove the locknut.
DISASSEMBLY
Caution: The wheel hub and bearing are one assembly and do not need to be disassembled.
ABS Sensor Rotor
Note: The ABS sensor rotor does not have to be removed unless you are replacing it.
-
Remove the ABS sensor rotor with a chisel.
