MX-6 L4-1991cc 2.0L DOHC (1993)
1.
Remove BAC valve.
2.
Cool valve to below 32°F (0°C).
3.
Heat BAC valve at point A with a blow drier. Verify that part B moves in direction of arrow.
4.
If not as specified, replace BAC valve.
Idle Air Control Valve
Idle Air Control Valve Inspection

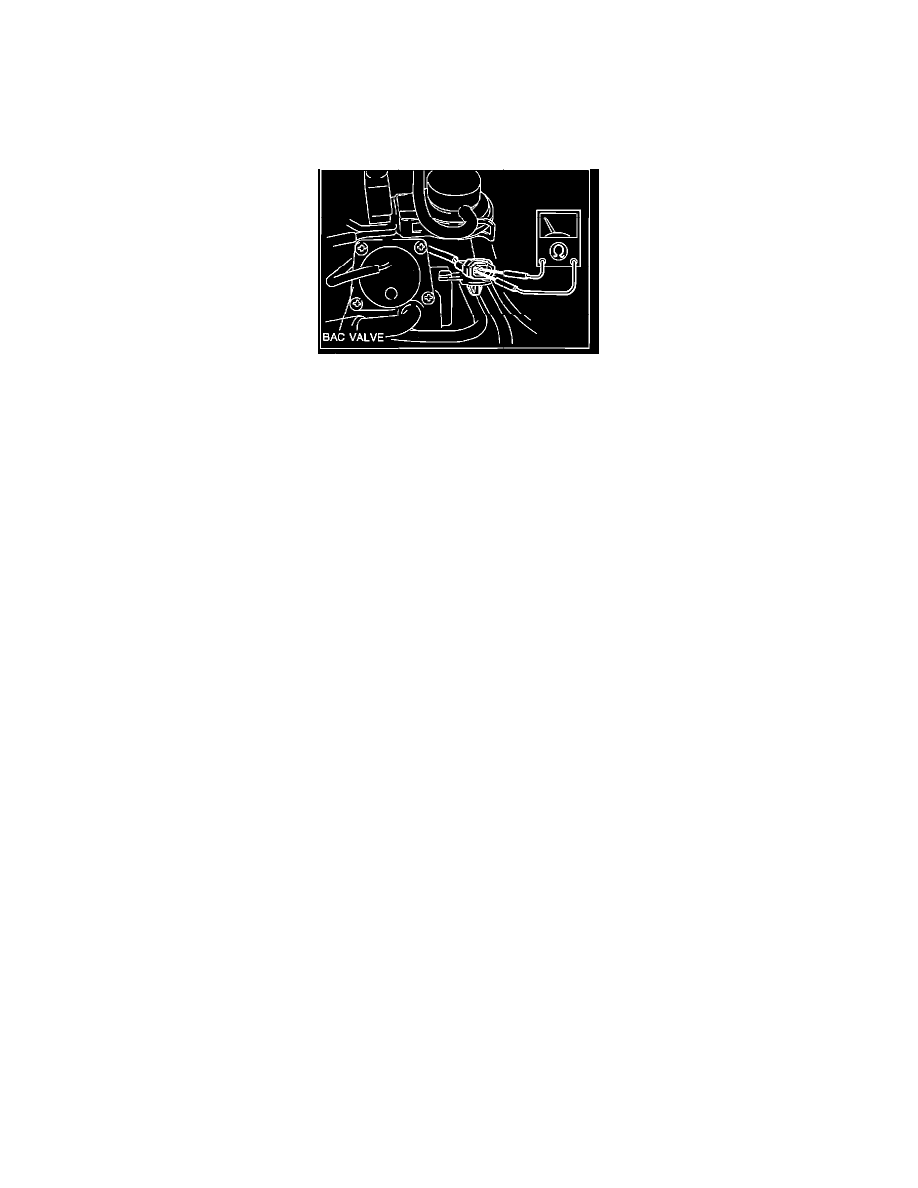

1.
Unplug valve connector.
2.
Measure resistance across valve terminals.
RESISTANCE:7.7 - 9.3 Ohms @ 73°F (23°C)
3.
If not as specified, replace BAC valve.
