MX-6 L4-1991cc 2.0L DOHC (1993)

Page 1
background image

Climate Control Unit: Testing and Inspection

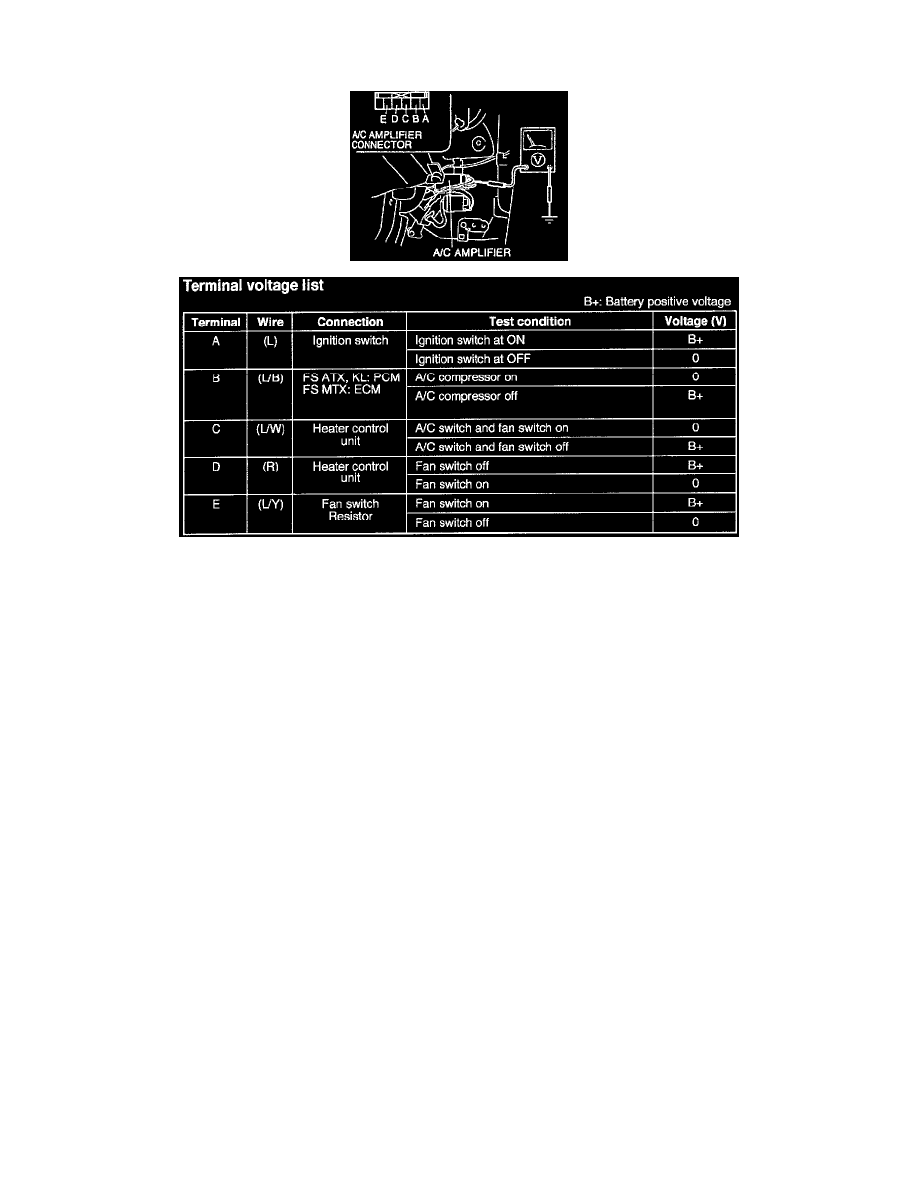

A/C Amplifier Inspection

1.  Turn the ignition switch to ON.
2.  Measure the terminal voltage of the A/C amplifier connector.
