Valve Body: Diagrams

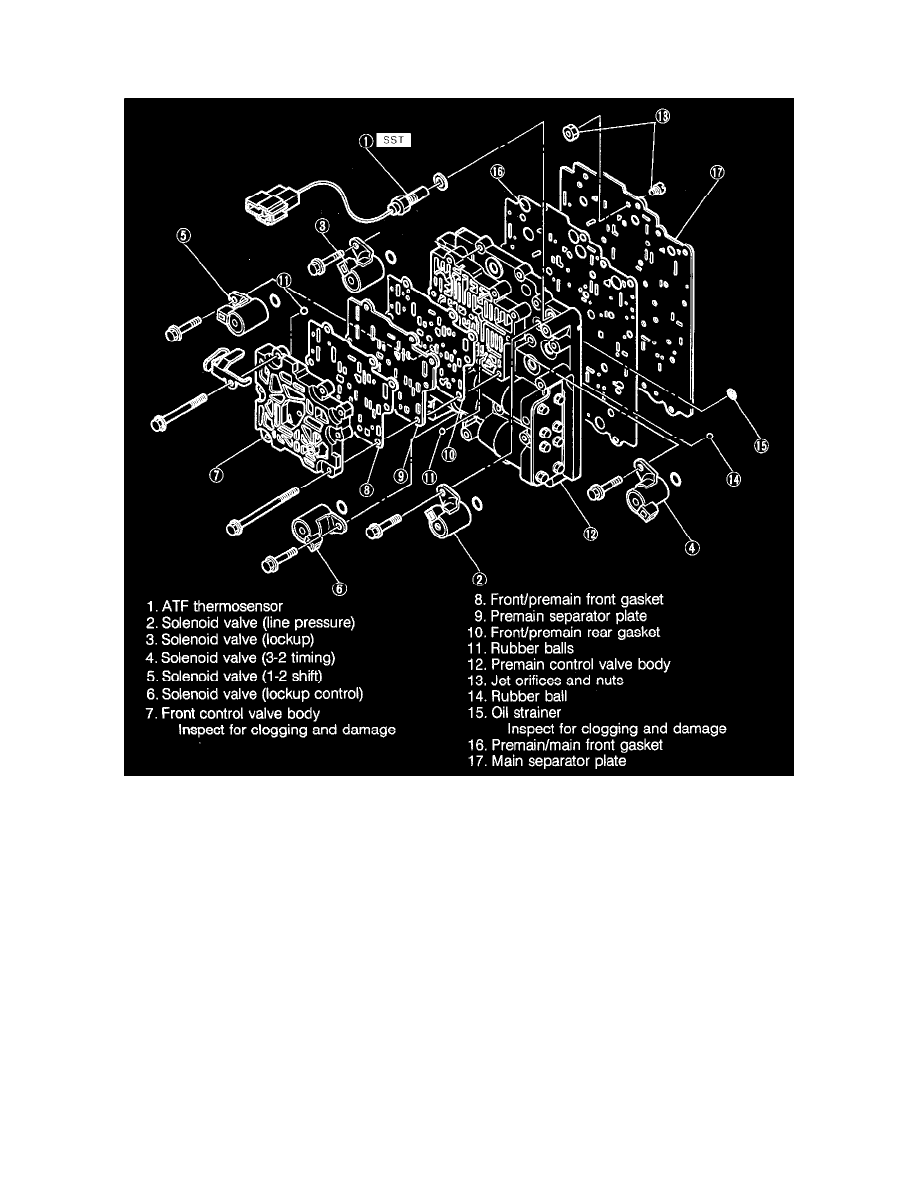

Control Valve Body

Transmission and Drivetrain
Automatic Transmission/Transaxle
Valve Body, A/T / Component Information
Diagrams
Control Valve Body
