MX-6 L4-1991cc 2.0L DOHC (1993)
Axle Shaft: Service and Repair
Replacement
Removal/Installation
Note: Drain the transaxle oil before removal.

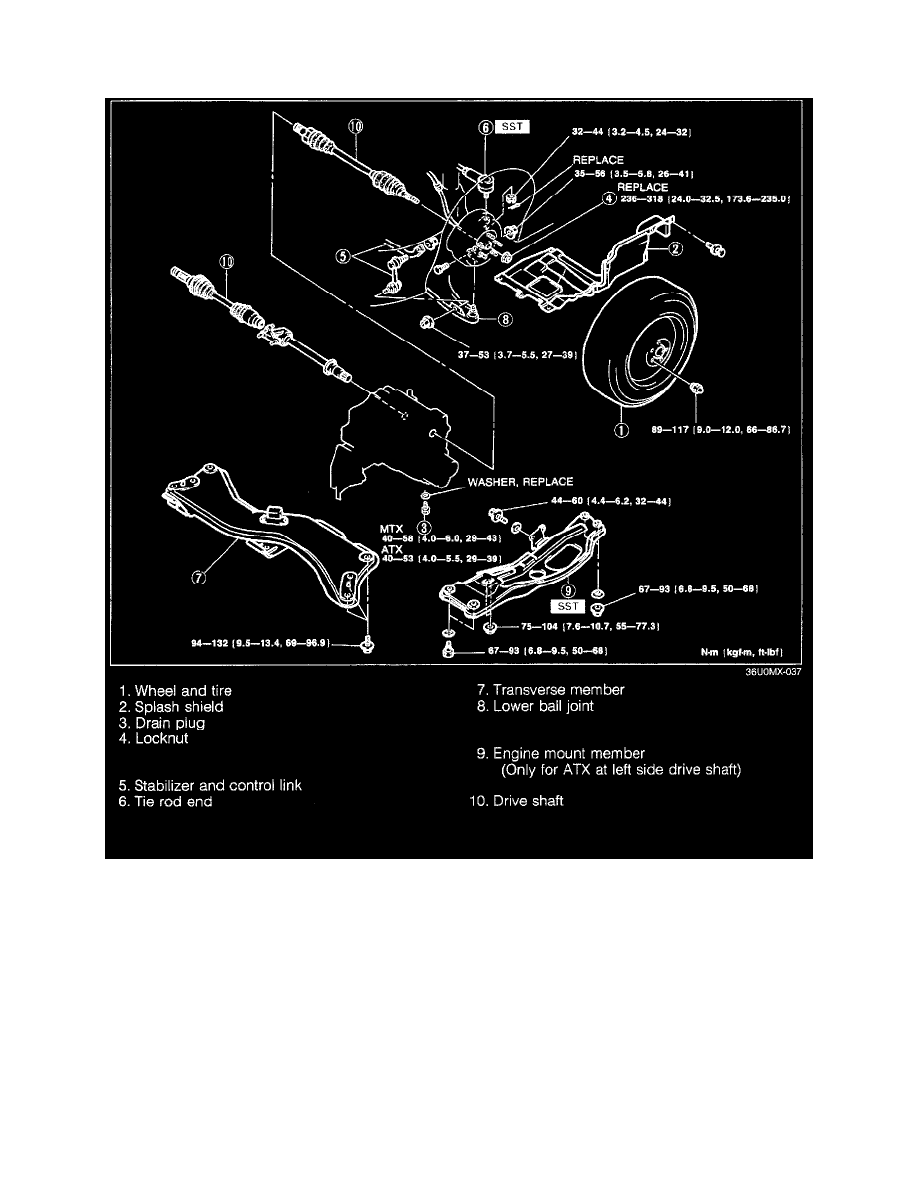

1. Remove in the order shown in the figure.
2. Install in the reverse order of removal.
3. After installation, fill the transaxle with the specified amount of the specified transaxle oil and inspect for oil leakage.
4. Loosely tighten the stabilizer nuts. Lower the vehicle and tighten all nuts to the specified torques with the vehicle unladen.
5. Check the front wheel alignment.
Removal
Locknut
