Climate Control Unit: Testing and Inspection

Inspection

1. Turn the ignition switch to ON.
2. Measure the voltage at each terminals of the A/C amplifier connector.

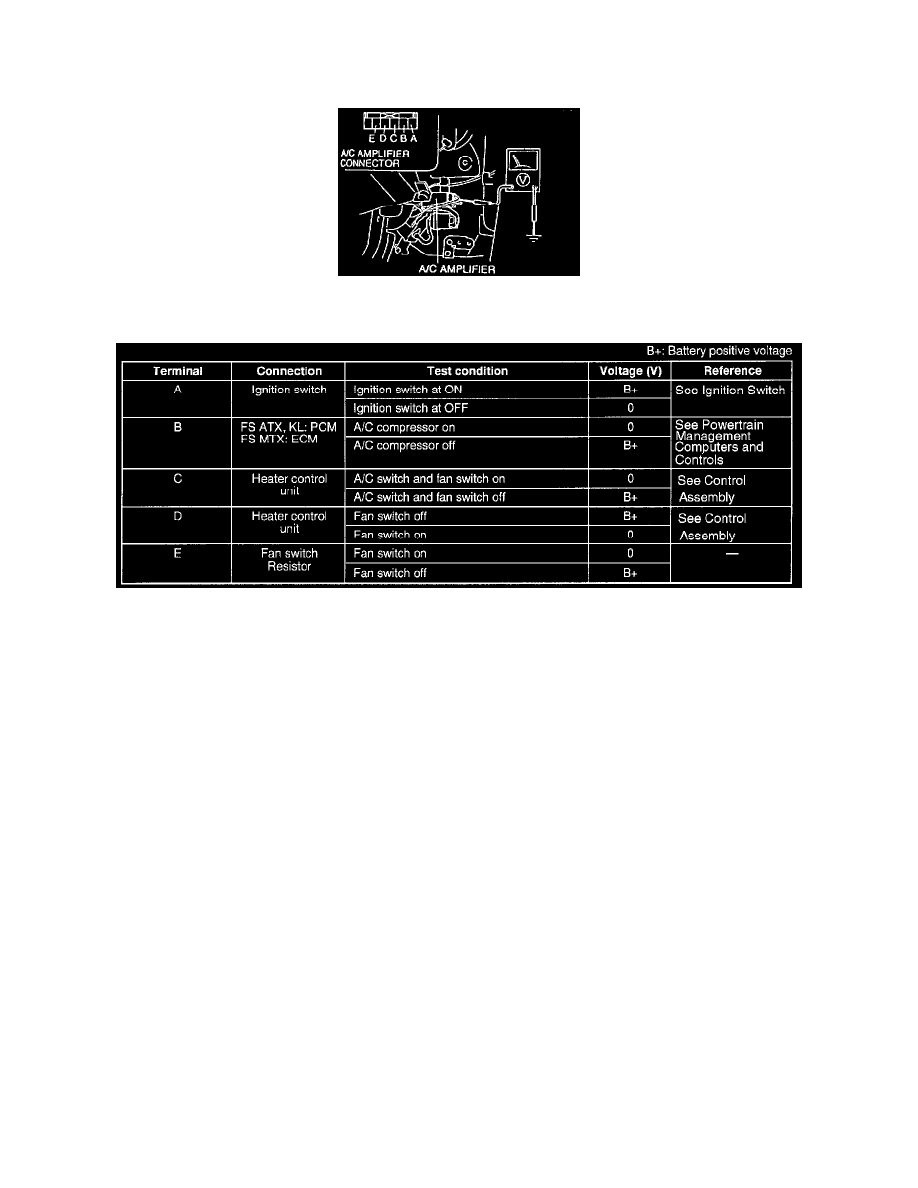

Terminal Voltage List
