Timing Belt: Specifications (page 2 of 10)
- Make
- Mazda
- Model
- MX-6 LS
- Engine
- V6-2.5L DOHC
- Year
- 1997
- Section
- Timing Belt
MaintenanceSpecifications · page 2 of 10
Timing Belt: Service and Repair

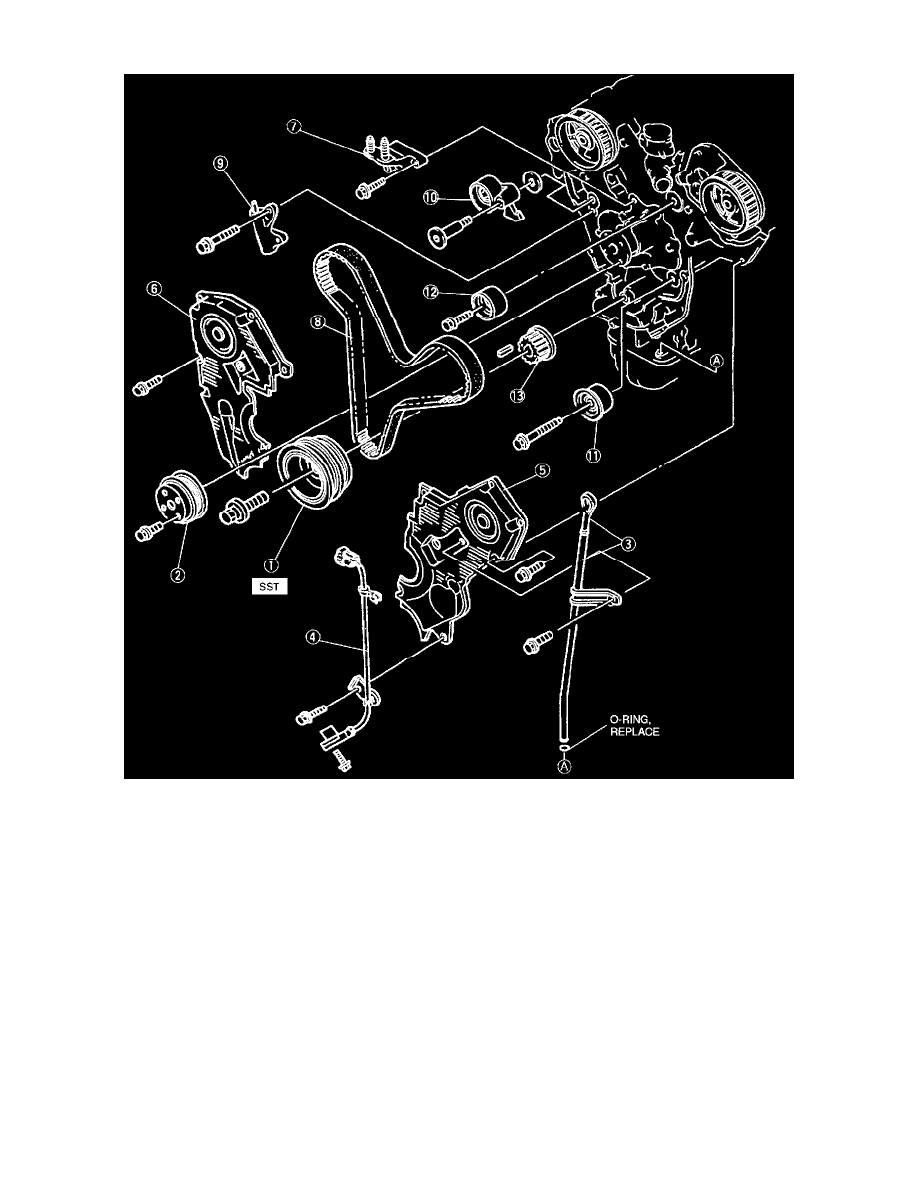

Legend
1. Crankshaft pulley
2. Water pump pulley
3. Dipstick and pipe
4. Crankshaft position sensor
5. Timing belt cover (LH)
6. Timing belt cover (RH)
7. No.3 engine mount bracket
8. Timing belt
9. Timing belt auto tensioner
10. Tensioner pulley
11. No.2 idler pulley
12. No.1 idler pulley
13. Timing belt pulley
