MX-6 LS V6-2.5L DOHC (1997)
Tightening torque:
38-44 N.m (3.8-4.5 kgf.m, 25-32 ft.lbf)

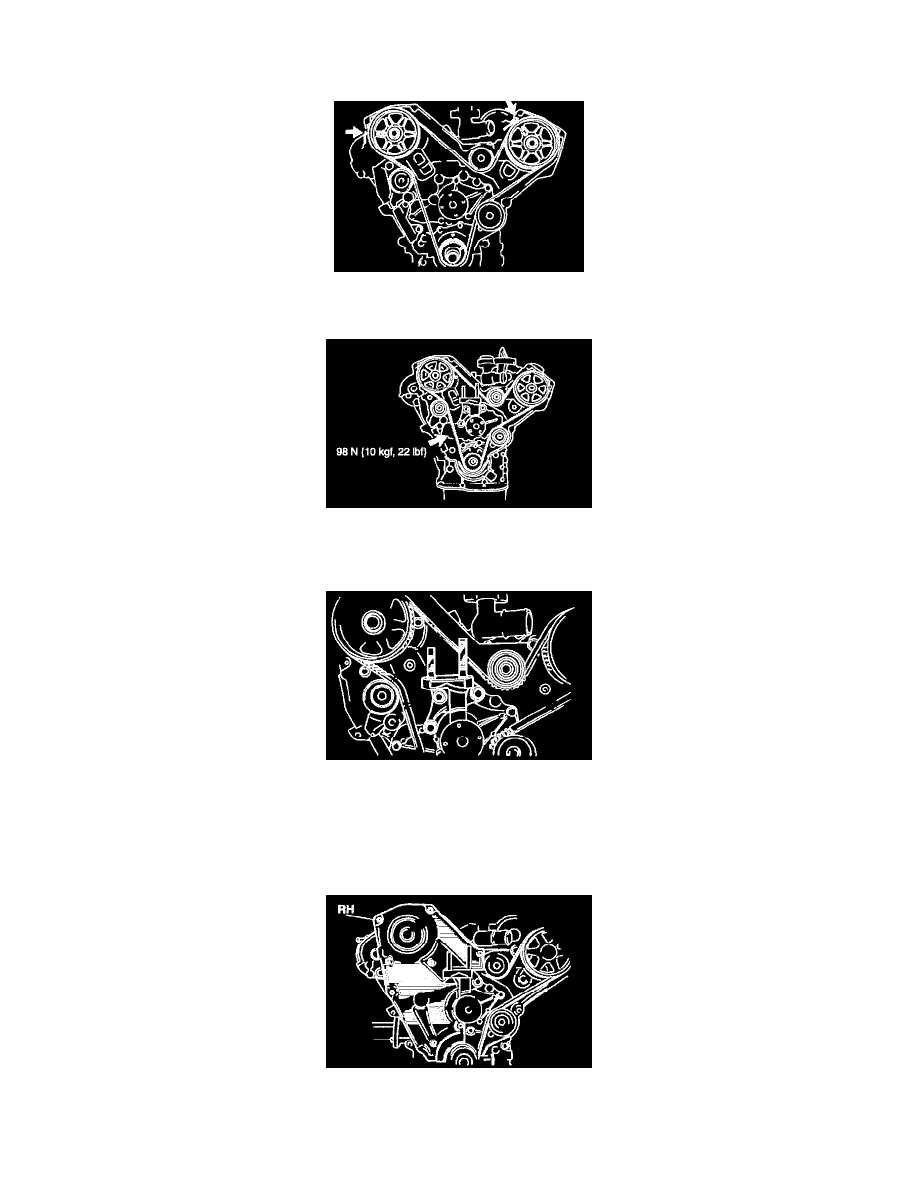

9. Turn the crankshaft clockwise twice, and align the timing marks.
10. Verify that the timing marks are correctly aligned. If not, repeat the procedure from Timing Belt Auto Tensioner.
11. Check the timing belt deflection. If it is incorrect, replace the auto tensioner.
Deflection: 6.0-8.0 mm (0.24-0.31 in)
No.3 engine mount bracket
Install the No.3 engine mount bracket.
Tightening torque:
44-60 N.m (4.4-6.2 kgf.m, 32-44 ft.lbf)
Timing Belt Cover
1. Install the right timing belt cover.
