MX-6 LS V6-2.5L DOHC (1997)
![background image](/mazda/mx-6_ls/v6-2.5l_dohc/Page-431002.png)

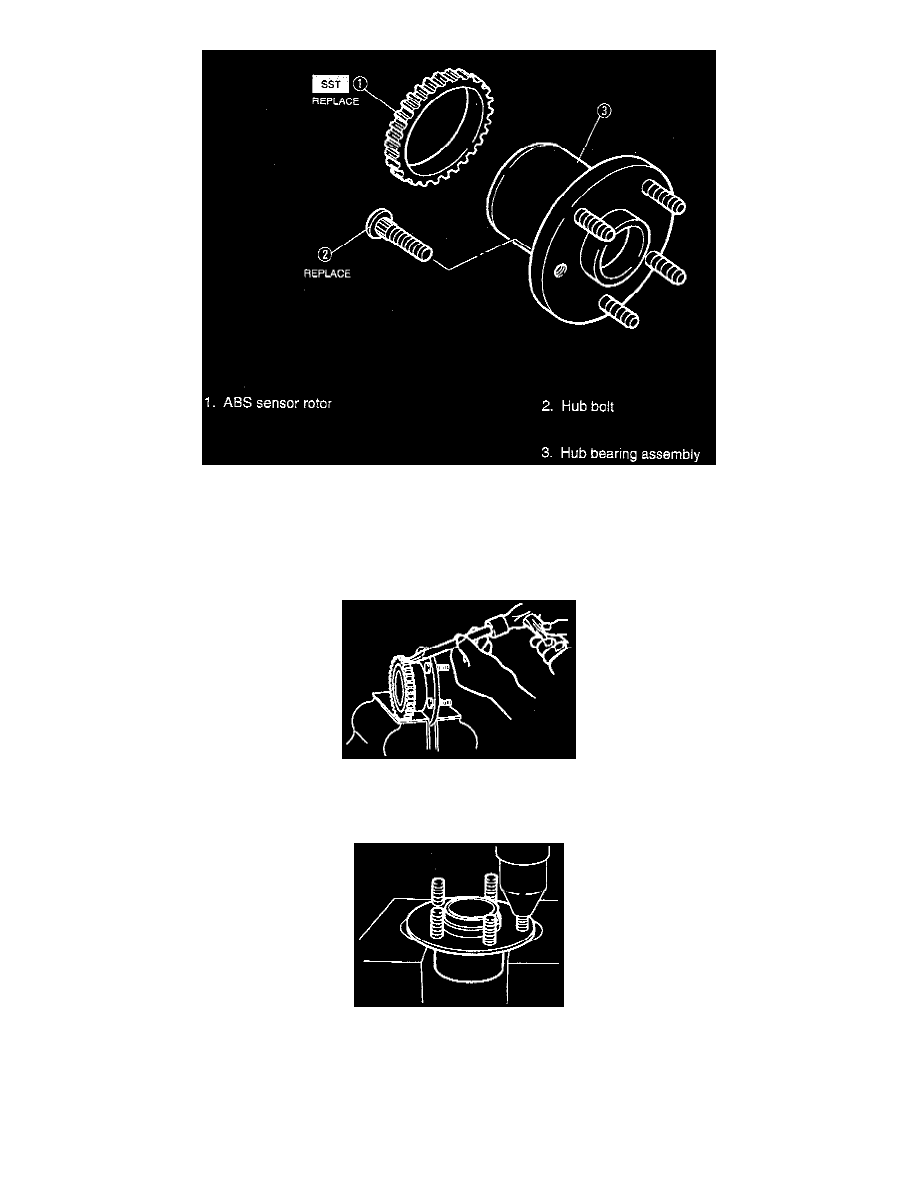

DISASSEMBLY
1. Disassemble in the order shown in the illustration, referring to the following steps.
CAUTION: The wheel hub and bearing are one assembly and do not need to be disassembled.
NOTE: The ABS sensor rotor does not have to be removed unless you are replacing it.
2. Remove the ABS sensor rotor by using a chisel.
NOTE: The wheel hub and bearing are one assembly and do not to be disassembled.

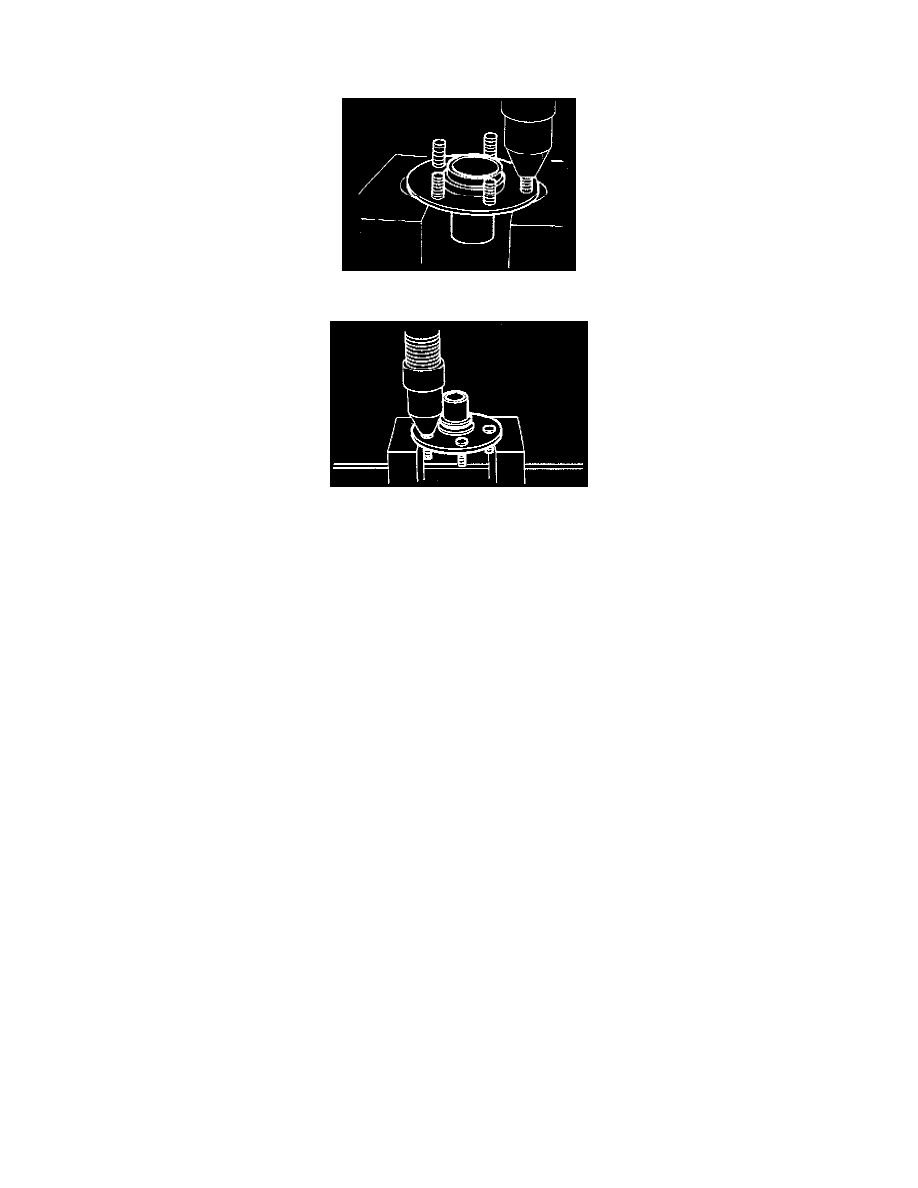

3. Remove the hub bolts by using a press.
ASSEMBLY
1. Assemble in the reverse order of disassembly, referring to the following steps.
